In modern logistics, manufacturing, and retail supply chains, packaging boxes carry more than just products—they carry barcodes, shipping information, traceability data, branding elements, and regulatory labels. For high-volume operations, accurate and consistent labeling on cartons is essential for warehouse automation, scanning efficiency, and distribution accuracy.

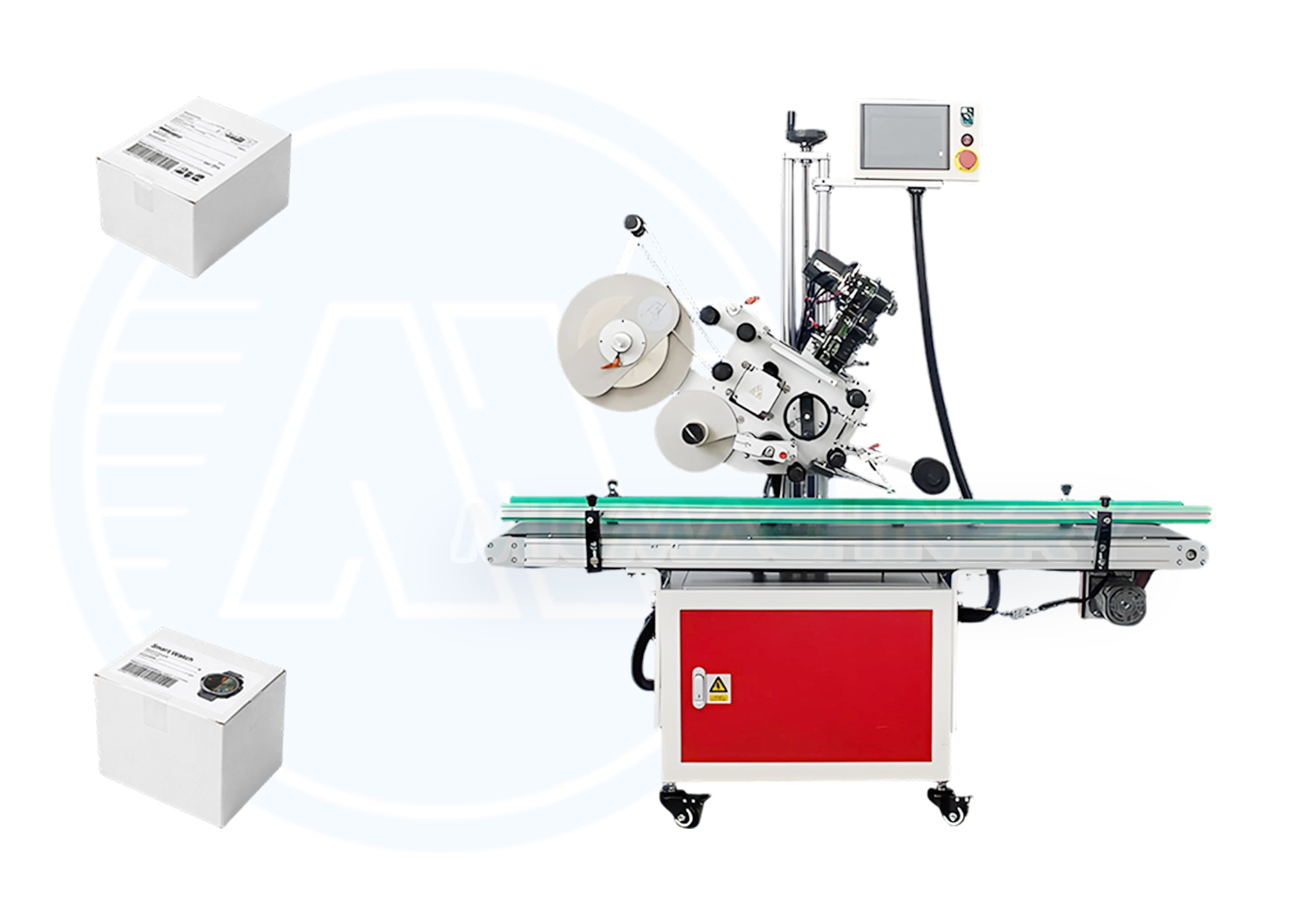

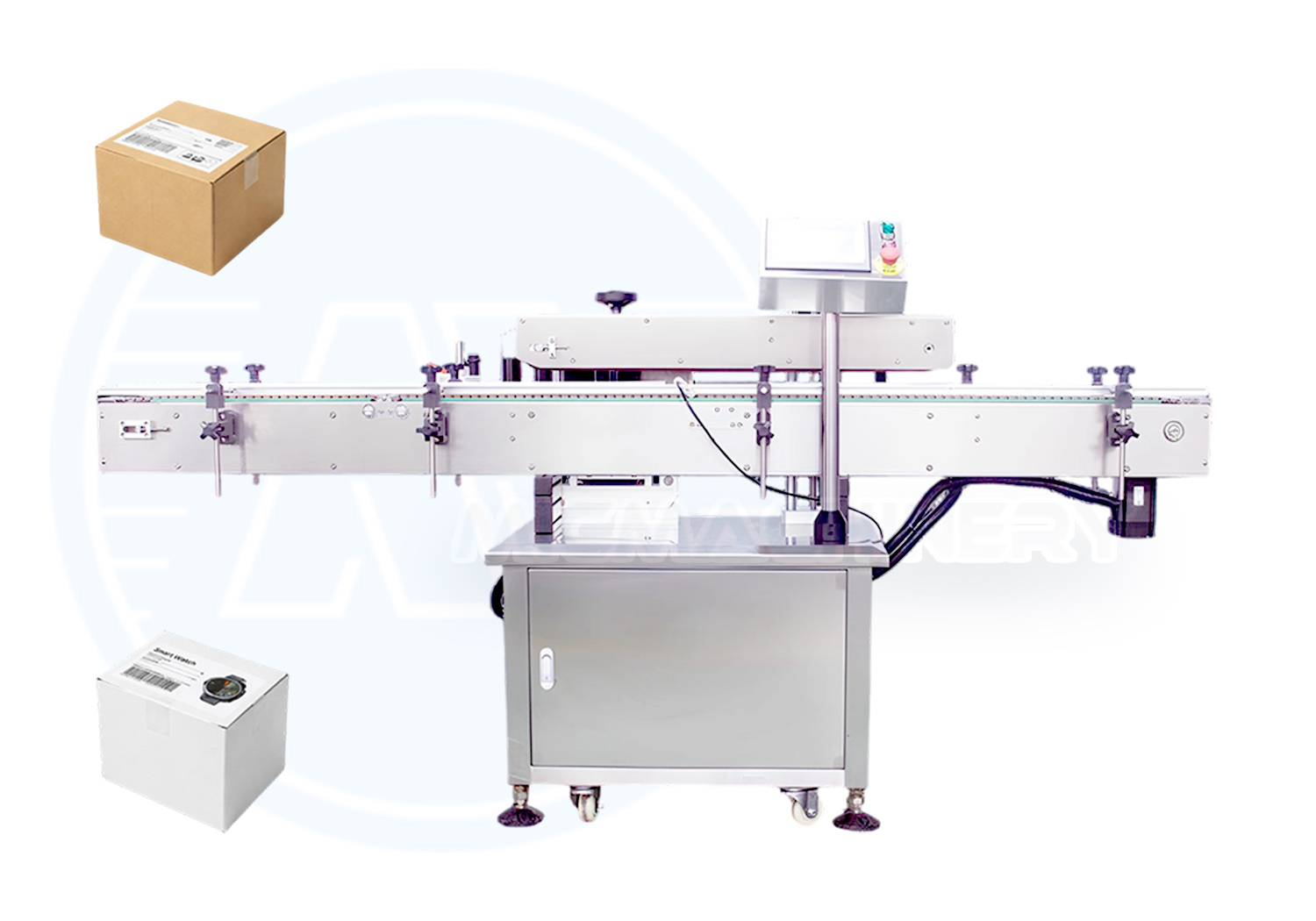

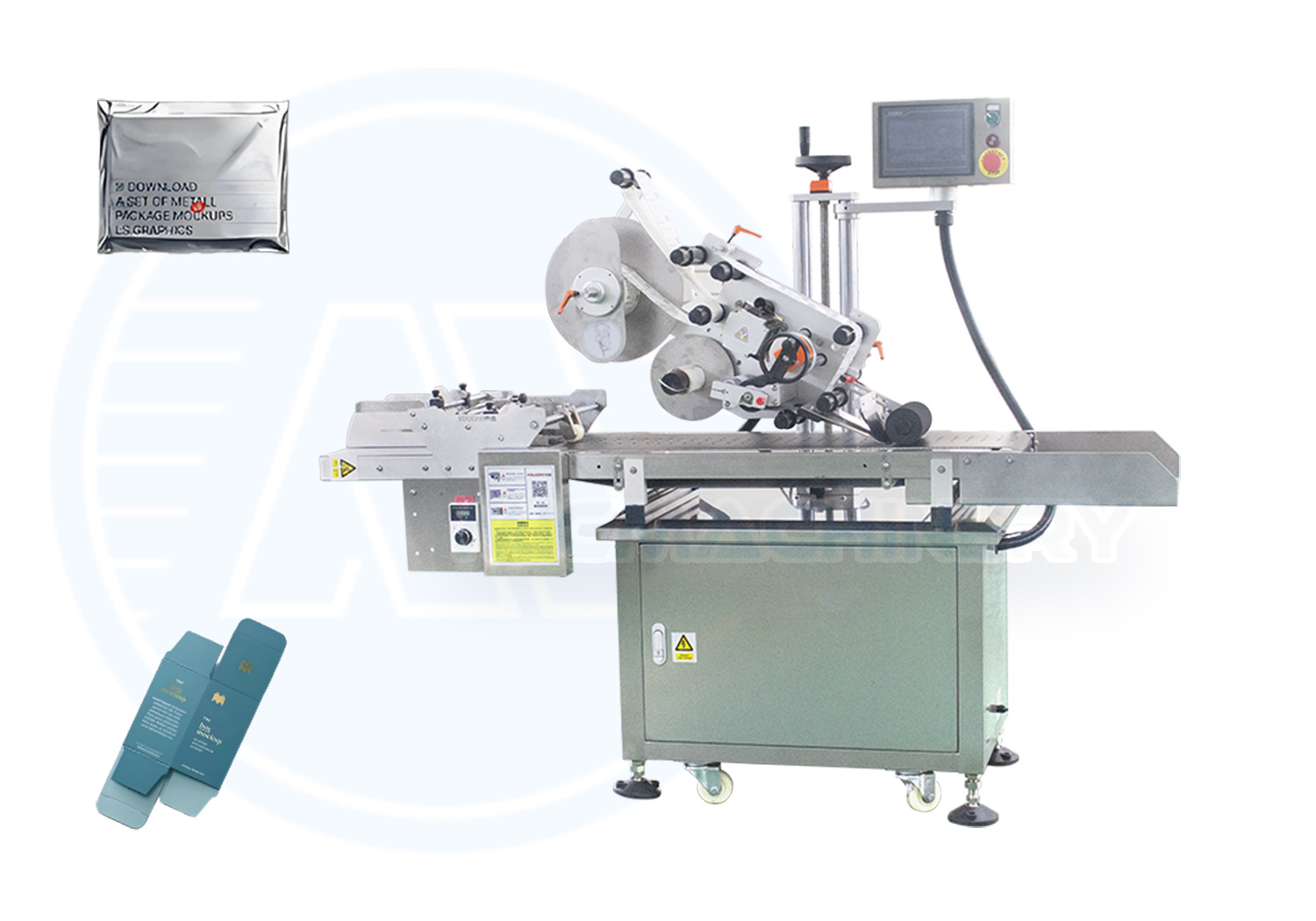

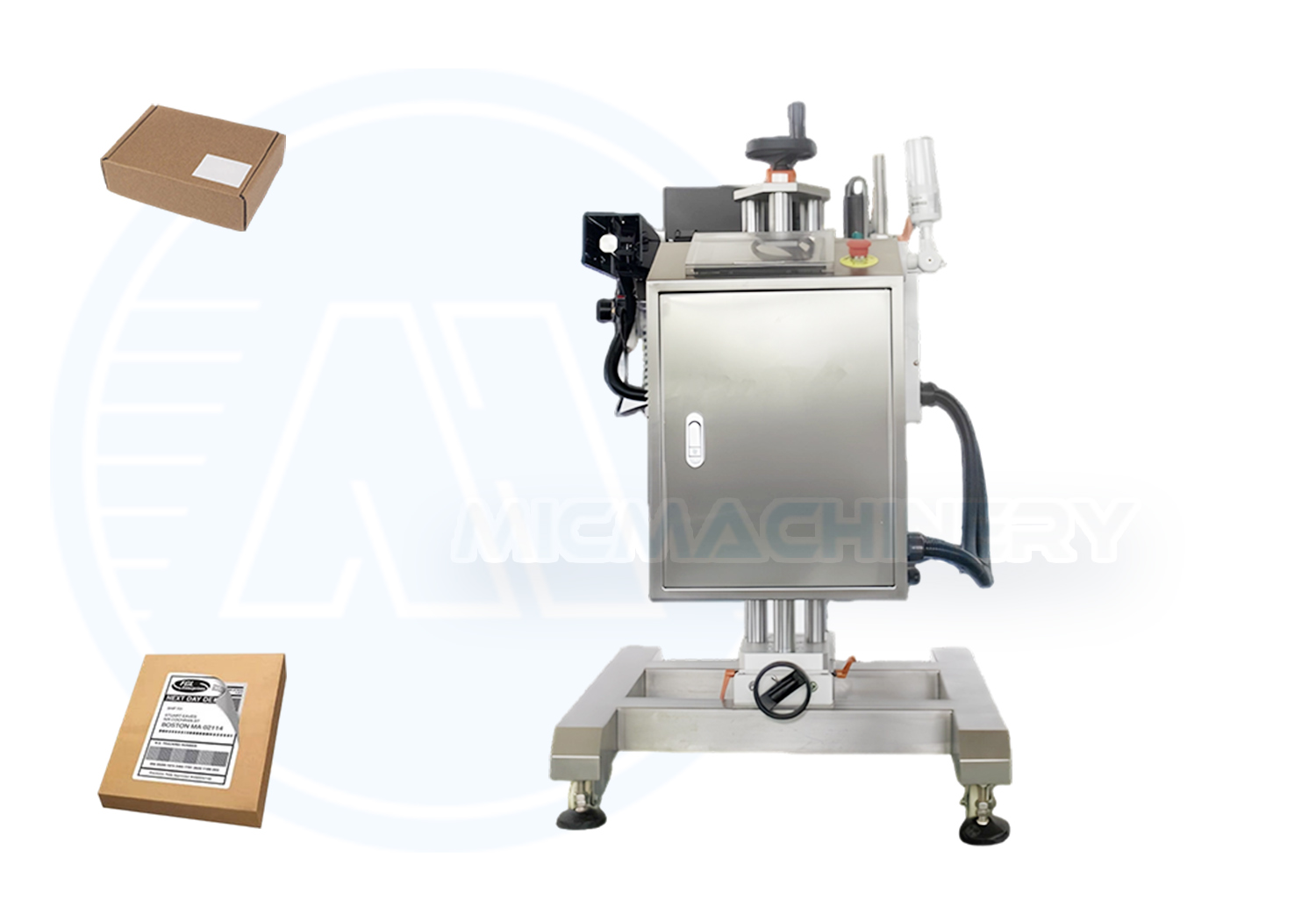

The Box Labeling Machine from MIC Machinery is designed for precise application of self-adhesive labels onto cartons, corrugated boxes, paperboard packaging, and shipping cases. It is widely used in food production, pharmaceuticals, cosmetics, chemicals, e-commerce logistics, and industrial manufacturing where high-speed and reliable carton labeling is required.
Unlike bottle or pouch labeling systems, carton labeling focuses on flat-surface stability, high-speed scanning compatibility, and integration with warehouse automation systems such as barcode tracking and ERP-driven logistics.
Working Process
The labeling process begins when cartons are fed into the conveyor system from upstream packing machines or manual loading stations. Guide rails ensure that each box is properly aligned before reaching the labeling area.
A spacing control mechanism regulates the distance between cartons to ensure consistent labeling timing. Photoelectric sensors detect incoming boxes and send signals to the PLC system to activate label dispensing.
Once the box reaches the labeling station, the servo-driven applicator precisely dispenses the label at the correct position. For top labeling, the label is applied as the box passes under the labeling head; for side labeling, a pressing mechanism ensures smooth application on vertical surfaces.
Pressure rollers or soft brushes press the label firmly onto the carton surface, eliminating air bubbles and ensuring strong adhesion, even on corrugated materials.
In print-and-apply configurations, the system prints barcode or shipping information in real time before immediately applying the label to the box. Optional vision systems verify label placement and barcode readability before the carton continues to the next stage.
After labeling, boxes proceed to palletizing systems, warehouse sorting lines, or shipping preparation areas. The PLC continuously monitors conveyor speed, sensor feedback, and labeling synchronization to maintain stable operation.
Video Demonstration
Applications
The Box Labeling Machine is widely used in industries requiring carton identification, logistics tracking, and automated warehouse labeling.
Typical applications include:
E-commerce shipping boxes
Food packaging cartons
Beverage cartons
Pharmaceutical shipping cases
Cosmetic product boxes
Chemical product cartons
Industrial spare parts packaging
Express logistics parcels
Warehouse distribution boxes
Export packaging cartons
FMCG product cases
Retail distribution packaging
The system supports corrugated cardboard, kraft boxes, rigid cartons, laminated packaging boxes, and various industrial shipping containers.
Customization Options
Different industries require different labeling formats and logistics integration. MIC Machinery provides flexible customization options for carton labeling systems.
Print-and-Apply System
Supports real-time printing and immediate label application for dynamic logistics data.
Multi-Side Labeling
Allows top, side, or multi-face labeling depending on warehouse requirements.
Barcode Verification System
Integrated scanners ensure label readability and data accuracy before shipment.
Vision Inspection System
Cameras check label position, print quality, and missing label detection.
ERP/WMS Integration
Supports connection with warehouse management systems for automated data synchronization.
Heavy-Duty Conveyor System
Designed for large or heavy cartons used in industrial logistics environments.
High-Speed Servo Control
Ensures stable labeling performance even under continuous high-throughput operation.
Maintenance and Operation
Regular maintenance is essential to ensure consistent labeling accuracy and system stability in logistics environments. Daily cleaning should focus on conveyor rollers, labeling heads, sensor surfaces, and print modules to prevent dust accumulation from cardboard materials.
Weekly inspections should verify servo synchronization, conveyor alignment, sensor calibration, and label feeding stability. Worn rollers or pressure brushes should be replaced promptly to maintain application quality.
For print-and-apply systems, print head cleaning and ribbon inspection should be performed regularly to ensure barcode clarity and label readability.
Electrical systems, PLC modules, and communication interfaces should be checked periodically to ensure stable integration with warehouse systems.
A preventive maintenance schedule helps reduce downtime, improve labeling accuracy, and extend equipment service life.
FAQ
Q1: What types of boxes can the machine label? It supports corrugated cartons, shipping boxes, kraft paper boxes, and industrial packaging cases.
Q2: Can it print and apply labels at the same time? Yes. Optional print-and-apply systems allow real-time printing and immediate labeling.
Q3: What is the labeling accuracy? Standard accuracy is approximately ±1.0 mm depending on carton size and speed.
Q4: Can it integrate with warehouse systems? Yes. It supports ERP and WMS integration for automated logistics workflows.
Q5: Is it suitable for high-speed logistics operations? Yes. It can operate up to 150 boxes per minute depending on configuration.
Q6: Can it verify barcode quality? Yes. Optional barcode scanners and vision systems ensure readability and correctness.
Box Labeling Machine Solutions from MIC Machinery
The MIC Machinery Box Labeling Machine provides a reliable and efficient solution for modern packaging and logistics operations. With servo-driven precision, intelligent sensing systems, and strong industrial construction, it ensures accurate carton labeling across high-speed production and warehouse environments, supporting seamless integration into automated supply chain systems.
