Vacuum Capping Machine——Industrial Vacuum Seal Cap Tightening System
Many food and beverage products require more than a secure cap to maintain quality during storage. Products such as jams, sauces, pickles, honey, canned fruits, and specialty condiments benefit from vacuum sealing, which helps reduce oxygen inside the container, preserve freshness, and extend shelf life. Achieving a stable vacuum while maintaining consistent cap torque requires specialized equipment designed for synchronized evacuation and sealing.
The Vacuum Capping Machine developed by MIC Machinery is engineered to create reliable vacuum-sealed containers through controlled vacuum generation and precision cap tightening. It is widely used in food processing plants, beverage manufacturers, condiment production facilities, and pharmaceutical packaging lines where product preservation and sealing integrity are critical.
Unlike conventional capping equipment, vacuum capping systems perform air extraction and cap tightening simultaneously inside a sealed chamber, ensuring repeatable vacuum levels and secure closures.

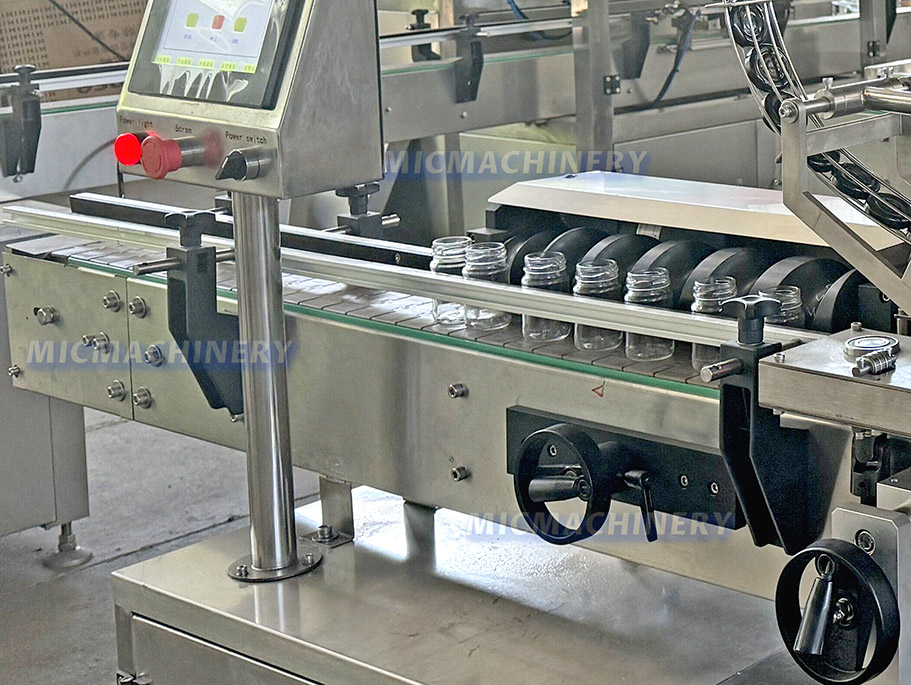

The vacuum capping process begins after containers have been filled with the finished product. Filled jars are transported automatically by the conveyor system into the vacuum capping station, where positioning guides ensure precise alignment before sealing.

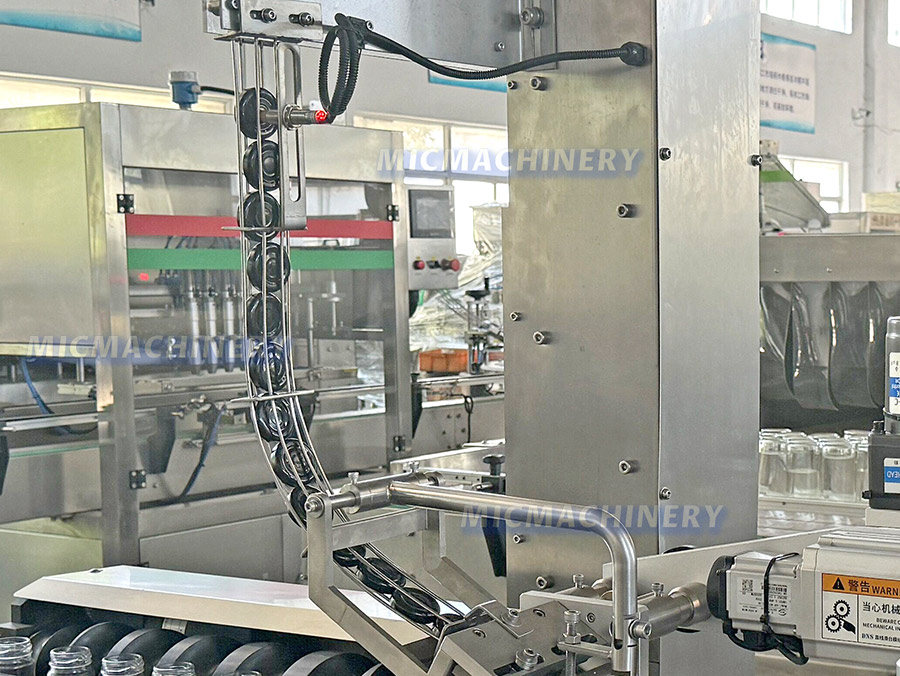

Caps are automatically supplied through the cap feeding system and placed loosely onto the container opening before entering the vacuum chamber. Once the jar is positioned, the chamber closes to create a sealed environment around the container.
A vacuum pump removes air from the chamber, reducing the pressure surrounding the container. As the pressure decreases, air inside the container headspace is also extracted. When the preset vacuum level is reached, the capping head immediately tightens the cap using servo-controlled torque.
Because sealing occurs while the chamber remains under vacuum, the container retains negative internal pressure after leaving the chamber. As atmospheric pressure returns outside the container, the sealed package maintains its vacuum condition, improving product preservation and reducing oxidation.

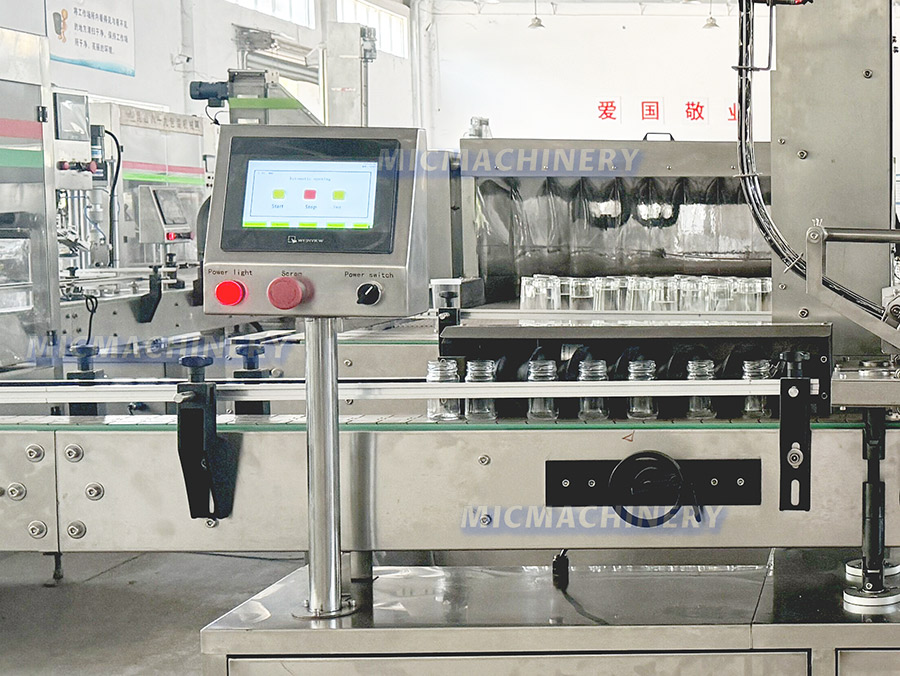

After sealing, containers exit the chamber and continue to downstream inspection, labeling, date coding, and carton packaging systems. The PLC automatically coordinates conveyor movement, chamber operation, vacuum generation, and capping torque to ensure stable continuous production.
Video Demonstration
Applications
The Vacuum Capping Machine is suitable for a wide variety of vacuum-packaged products.
Typical applications include:
Jam and fruit preserve jars
Honey packaging
Tomato sauce and ketchup
Chili sauce products
Pickled vegetables
Mushroom and canned food packaging
Peanut butter jars
Baby food containers
Pharmaceutical glass bottles
Specialty food packaging
The equipment supports glass jars, vacuum bottles, and other rigid containers requiring airtight sealing and long-term product preservation.
Customization Options
Every production line has unique container specifications and processing requirements. MIC Machinery provides flexible customization options to meet different manufacturing needs.
Adjustable Vacuum Control
Vacuum levels can be programmed according to product characteristics and packaging requirements.
Servo Torque Control
Provides highly repeatable cap tightening force for consistent sealing quality.
Automatic Cap Feeding System
Supports continuous production with reliable cap orientation and delivery.
Multi-Size Container Compatibility
Quick adjustment mechanisms allow efficient switching between different jar sizes.
Vacuum Inspection System
Optional sensors verify vacuum performance and reject improperly sealed containers.
SUS316L Hygienic Configuration
Suitable for acidic foods, pharmaceutical products, and corrosion-sensitive applications.
Full Production Line Integration
The machine can be connected directly with filling machines, bottle conveyors, labeling equipment, inspection systems, and end-of-line packaging machinery.
Maintenance and Operation
Routine maintenance helps ensure stable vacuum performance and long equipment life. Daily cleaning should include the vacuum chamber, cap handling components, sealing surfaces, and conveyor guides to remove food residue and maintain hygienic conditions.
Weekly inspections should verify vacuum pump performance, chamber sealing gaskets, torque calibration, and cap feeding stability. Vacuum hoses and seals should be checked regularly for leaks that could reduce sealing efficiency.
Lubrication of mechanical drive components should follow the recommended maintenance schedule. Sensors, PLC connections, and pneumatic components should also be inspected periodically to maintain accurate synchronization throughout the production process.
With proper preventive maintenance, the machine delivers consistent vacuum quality and reliable long-term operation under continuous industrial production conditions.
FAQ
Q1: What products are suitable for vacuum capping? Jam, honey, sauces, pickled foods, canned vegetables, baby food, and many other products packaged in rigid containers.
Q2: Can the vacuum level be adjusted? Yes. Operators can set different vacuum values according to product requirements.
Q3: What cap types are supported? The machine primarily supports metal twist-off vacuum caps and selected screw cap designs.
Q4: Does the machine work with different jar sizes? Yes. Adjustable guides and capping heads accommodate various container diameters and heights.
Q5: Can it be integrated into a complete production line? Yes. It easily connects with filling, labeling, inspection, and packaging equipment.
Q6: How is sealing consistency maintained? The combination of controlled vacuum generation, servo torque control, and PLC automation ensures repeatable vacuum levels and reliable cap tightening throughout continuous production.
Vacuum Capping Solutions from MIC Machinery
The MIC Machinery Vacuum Capping Machine is designed to provide reliable vacuum sealing, precise torque control, and efficient automated operation for modern food, pharmaceutical, and specialty packaging facilities. By combining stable vacuum generation with intelligent control technology, the system helps manufacturers improve product preservation, extend shelf life, and maintain consistent packaging quality across large-scale production lines.
