Self-Flowing Filling Machine——Gravity Filling Solution for Free-Flowing Liquids

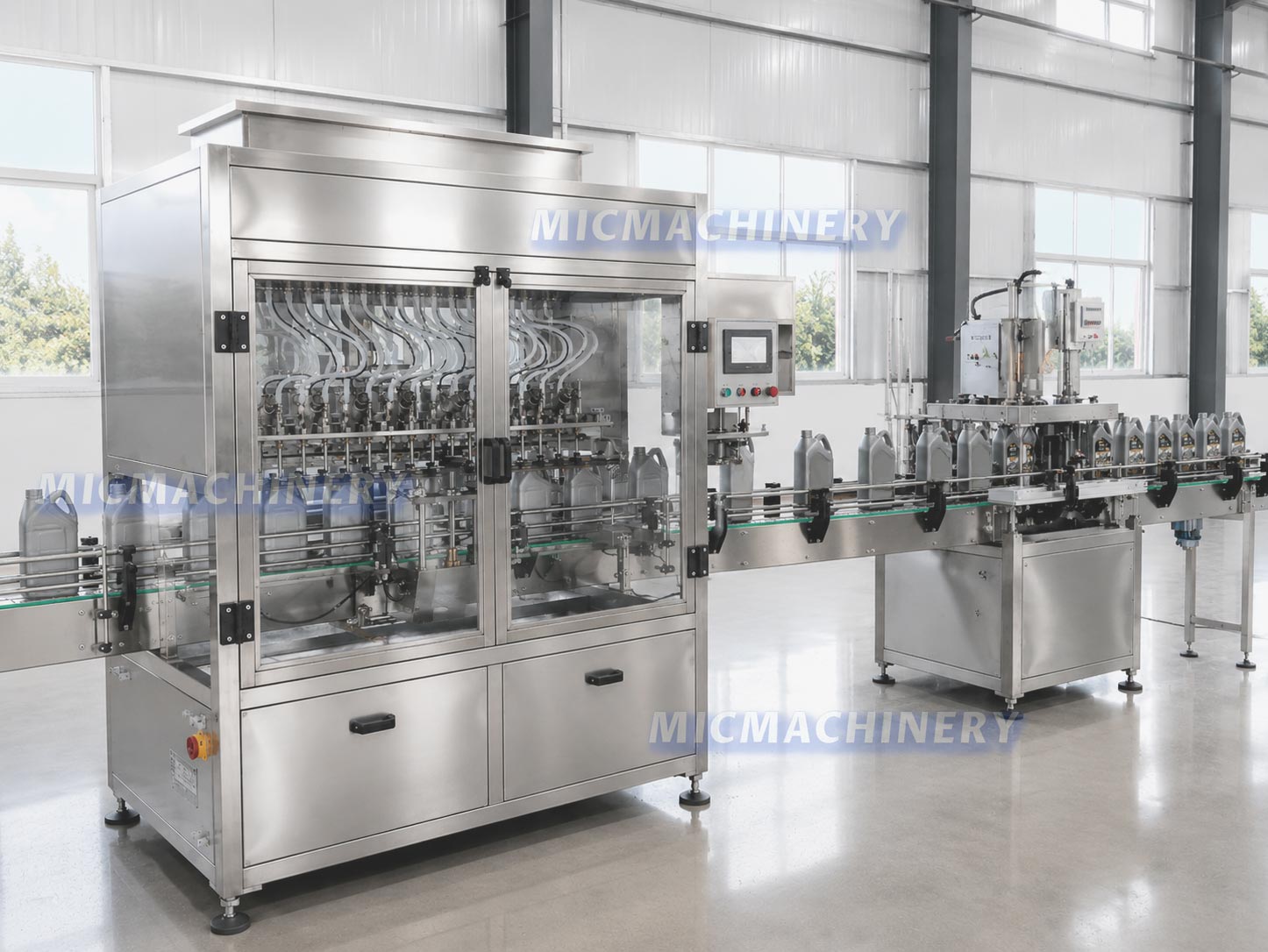

A Self-Flowing Filling Machine is designed for filling low-viscosity liquids that can flow naturally under gravity without the need for piston pumps or pressure-assisted transfer systems. This type of equipment is commonly used for water-based products, solvents, alcohols, detergents, liquid fertilizers, disinfectants, and other free-flowing liquids where fast filling speed and simple operation are required. MIC Machinery develops self-flowing filling systems for stable liquid level control, accurate volume adjustment, and reliable performance in continuous industrial production environments.
Working Process

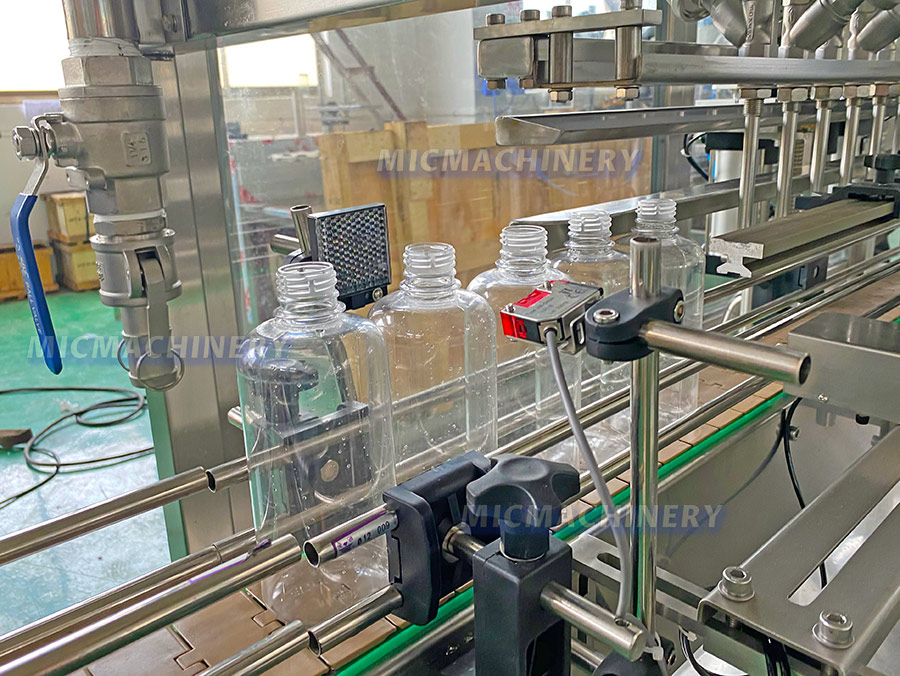

The filling process begins with empty containers entering the machine through an automatic conveyor system. Guide rails position each container accurately beneath the filling nozzles.

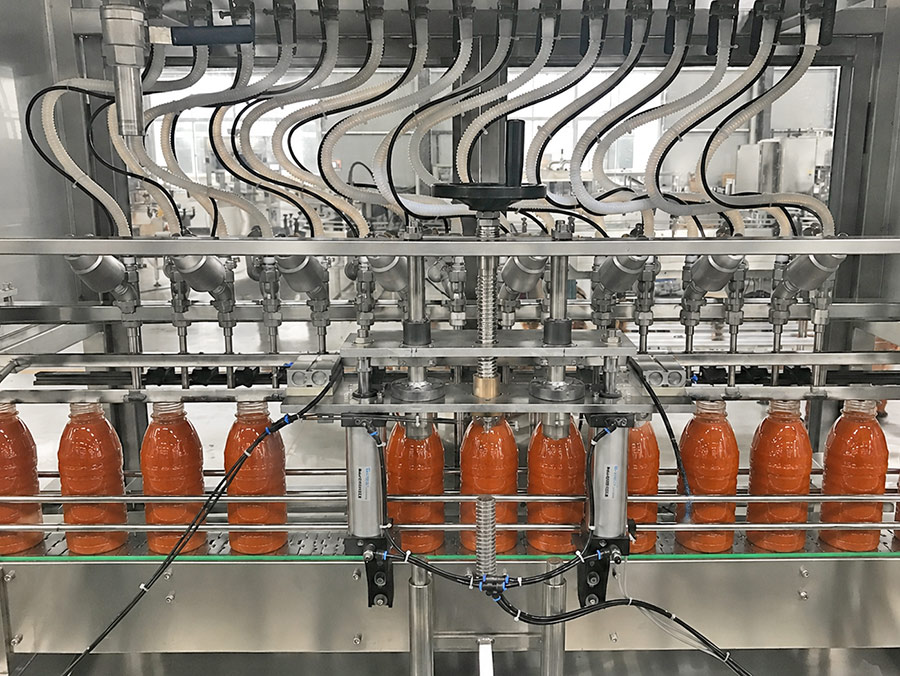

The liquid product is stored in an elevated tank positioned above the filling station. Using the principle of gravity, the product flows naturally from the storage tank into the containers when the filling valves open. Since no piston or pump is involved in the actual dosing process, the system is particularly suitable for free-flowing liquids with stable flow characteristics.
Once the preset filling volume or level is reached, the valves close automatically to stop product flow. Modern systems use timing control, level sensing, or flow control mechanisms to maintain filling consistency across all containers.
After filling, containers move to downstream equipment such as capping machines, induction sealers, labeling systems, or carton packaging stations. The entire process can operate continuously as part of an automated production line.
Video Demonstration
Applications
Beverage Industry
Self-flowing filling machines are commonly used for drinking water, juice, tea beverages, flavored water, and other low-viscosity liquid products.
Chemical Industry
Suitable for detergents, cleaning solutions, liquid fertilizers, alcohol-based products, industrial chemicals, and water-soluble additives.
Pharmaceutical Industry
Used for disinfectants, sanitizers, medical solutions, and other free-flowing pharmaceutical liquids requiring controlled filling.
Cosmetic Industry
Applicable to toner, makeup remover, liquid soap, perfume base liquids, and other low-viscosity personal care products.
Agricultural Industry
Frequently used for pesticides, liquid nutrients, plant growth regulators, and water-based agricultural formulations.
Customization Options
Different products and production environments require specific machine configurations. MIC Machinery provides flexible customization options including:
· 4 to 20 filling heads
· Automatic bottle positioning systems
· Servo-controlled filling valves
· Anti-drip nozzle design
· Explosion-proof electrical systems
· Corrosion-resistant wetted parts
· SUS316 product-contact components
· Automatic capping integration
· Labeling machine integration
· CIP cleaning systems
· Liquid storage tanks
· Flow monitoring systems
Machines can also be adapted for aggressive chemicals, alcohol-based liquids, and other special industrial applications.
Maintenance and Daily Operation
One of the advantages of a self-flowing filling machine is its relatively simple mechanical structure, resulting in lower maintenance requirements compared with pump-driven filling systems.
Operators should routinely inspect:
· Filling valve operation
· Nozzle cleanliness
· Liquid tank condition
· Conveyor alignment
· Pneumatic components
· Product pipelines
· Electrical connections
· Sensor calibration
Regular cleaning of the liquid tank and filling valves is important to prevent residue buildup that may affect filling accuracy. For chemical products, appropriate flushing procedures should be followed after production runs.Preventive maintenance schedules help maintain consistent production performance and extend equipment service life.
FAQ
1）What products are suitable for a self-flowing filling machine?
The machine is best suited for low-viscosity liquids such as water, juice, detergents, disinfectants, alcohols, and liquid chemicals.
2）How does a self-flowing filling machine work?
The product flows naturally from an elevated tank into containers using gravity, without relying on piston pumps for filling.
3）Can the machine handle viscous products?
It is primarily designed for free-flowing liquids. High-viscosity products generally require piston filling or pump filling systems.
4）Is filling accuracy reliable?
Yes. Modern gravity filling systems use controlled valves and PLC systems to maintain stable filling accuracy.
5）Can multiple bottle sizes be filled?
Yes. Most machines can be adjusted to accommodate different bottle heights and container volumes.
Industrial Gravity Filling Solutions
A Self-Flowing Filling Machine provides an efficient and economical solution for packaging low-viscosity liquids where gravity can be used as the primary filling force. Its simple structure, reliable operation, and low maintenance requirements make it suitable for a wide range of food, beverage, cosmetic, pharmaceutical, agricultural, and chemical applications. MIC Machinery supplies customized gravity filling systems designed for long-term industrial operation, consistent filling performance, and seamless integration into modern packaging lines.
