Palletizer——Automatic Palletizing Equipment for Industrial Packaging Lines
A Palletizer is an automated material handling system designed to arrange and stack cartons, bags, cases, bottles, and other packaged products onto pallets according to a preset pattern. It is widely used at the end of production lines to improve palletizing efficiency, reduce manual handling, and ensure stable product stacking for storage and transportation.
MIC Machinery provides palletizing solutions for different industries, including food and beverage, chemical products, daily chemical products, and general manufacturing. The equipment can be configured for different package types, pallet sizes, stacking patterns, and production speeds.
In modern factories, automatic palletizing equipment is an important part of end-of-line automation. It connects with packaging machines, conveyors, and warehouse systems to create a continuous production process. Compared with manual pallet stacking, an automatic palletizer provides more consistent stacking quality and reduces physical labor requirements, especially for high-volume production environments.
The palletizing process starts when finished products arrive at the palletizer through the conveyor system. Products are transported in a controlled sequence to ensure accurate positioning before stacking.
The control system receives product information and calculates the required stacking pattern based on the selected program. Different products may require different arrangements to achieve maximum pallet stability and efficient space utilization.

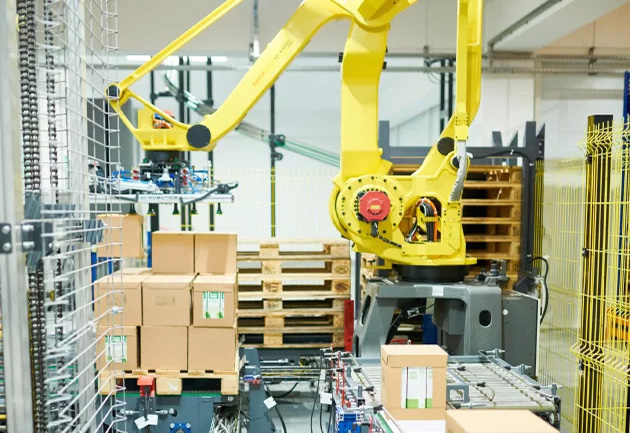

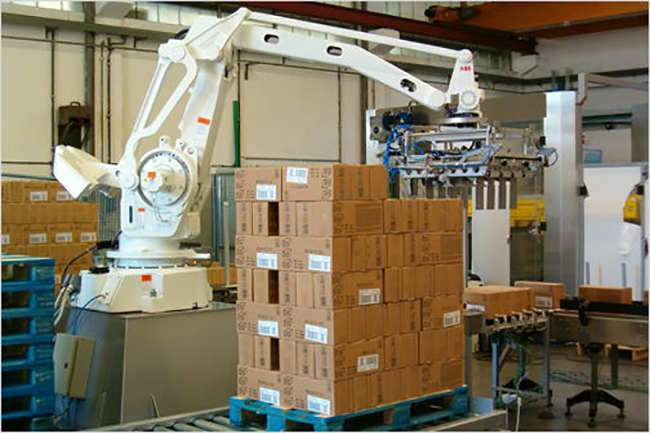

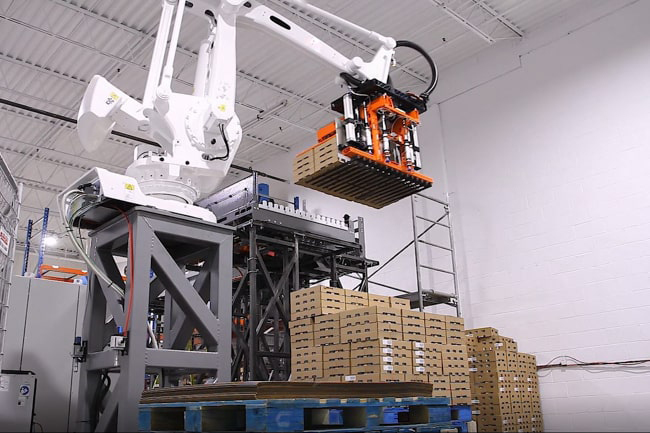

For robotic palletizers, the robotic arm picks up products using a customized gripper and places them onto the pallet according to the programmed pattern. The gripper design depends on the product type, such as carton boxes, bags, bottles, or containers.
For mechanical palletizers, products are arranged through conveyors, pushers, and lifting systems before being transferred onto the pallet layer by layer.
After completing one layer, the palletizing system automatically adjusts the product position or pallet height before continuing with the next layer. When the pallet reaches the preset height, it is discharged and transferred to the next process, such as stretch wrapping or warehouse transportation.
The entire operation is controlled automatically. Sensors monitor product movement, pallet position, and machine status to maintain stable production performance.
Video Demonstration
Applications
Palletizers are widely used in industries that require efficient product stacking and transportation preparation.
Food and Beverage Industry
Common applications include:
Beverage cartons
Food boxes
Bottled products
Canned products
Packaged snacks
Chemical Industry
The equipment is suitable for:
Chemical bags
Detergent cartons
Lubricant containers
Industrial chemical packages
Daily Chemical Industry
Applications include:
Shampoo cartons
Cleaning product packages
Cosmetic product boxes
Personal care items
Manufacturing Industry
Used for:
Hardware products
Electronic components
Industrial parts
Export packaging
The palletizing system can be adjusted for different product sizes, weights, and packaging formats.
Customization Options
MIC Machinery develops customized palletizing solutions according to production conditions and customer requirements.
Different products require different gripping and stacking methods. For example, carton products may use vacuum or mechanical grippers, while bags may require special clamp systems to maintain stable handling without damaging the package.
The palletizing program can be customized according to pallet dimensions, product arrangement, and transportation requirements. Multiple stacking patterns can be stored in the control system, allowing quick product changeover.
Customization options include:
Robotic palletizing system
Automatic pallet feeding
Multiple pallet size compatibility
Custom gripper design
Conveyor integration
Barcode tracking system
Safety protection enclosure
Warehouse automation connection
The machine can also be combined with pallet wrapping equipment and automatic conveying systems to improve overall packaging efficiency.
Maintenance and Operation
Regular maintenance is essential for keeping a palletizer operating reliably in continuous production environments.
The gripping system should be inspected regularly to ensure accurate product handling. Wear parts such as suction cups, clamps, and mechanical components should be checked and replaced when necessary.
The conveyor system requires regular cleaning and adjustment to maintain smooth product transfer. Any product residue or dust accumulation may affect positioning accuracy.
Mechanical parts including bearings, chains, and moving joints should be lubricated according to the maintenance schedule. Proper lubrication helps reduce wear and extends equipment service life.
Electrical components such as PLC systems, servo motors, sensors, and control panels should be inspected periodically. Sensors should remain clean and correctly positioned to ensure accurate product detection.
A preventive maintenance program helps reduce downtime and improves the stability of automated palletizing operations.
FAQ
Q1: What is a palletizer? A palletizer is an automatic machine that arranges products onto pallets for storage and transportation.
Q2: What products can be palletized? It can handle cartons, bags, boxes, bottles, containers, and other packaged products.
Q3: What is the difference between robotic and mechanical palletizers? Robotic palletizers use industrial robots for flexible handling, while mechanical palletizers use dedicated mechanisms for specific production applications.
Q4: Can the palletizer work with packaging machines? Yes. It can integrate with carton packing machines, conveyors, pallet wrapping machines, and warehouse systems.
Q5: Can the stacking pattern be changed? Yes. The stacking program can be adjusted according to pallet size, product dimensions, and transportation requirements.
Q6: Is the palletizer suitable for high-speed production lines? Yes. The machine can be designed for different production capacities according to factory requirements.
MIC Machinery Palletizer provides an automated solution for efficient product stacking and end-of-line packaging operations. With flexible configurations, programmable control systems, and customized handling solutions, it helps manufacturers improve palletizing consistency and optimize production workflows.
