Sauce Packaging Machine——Industrial Viscous Food Filling & Packing System
Sauce packaging presents a unique set of engineering challenges due to its wide viscosity range, particle content, and sensitivity to temperature and mixing conditions. Products such as ketchup, chili sauce, mayonnaise, and salad dressings do not behave like standard liquids. Some flow slowly under gravity, others require constant agitation to maintain uniform texture, and many contain solid particles that can affect filling stability.
The Sauce Packaging Machine developed by MIC Machinery is designed specifically for controlled dosing, stable handling, and clean packaging of viscous food products. It is widely used in food processing plants, condiment factories, OEM packaging facilities, and commercial sauce production lines supplying retail and food service markets.
Unlike conventional liquid fillers, sauce packaging systems must combine anti-drip control, particle adaptability, and precise volumetric dosing while maintaining hygienic food-grade standards.
Machine Parameter
Working Process
The sauce packaging process begins with ingredient preparation in a mixing tank where oil, water, seasonings, and stabilizers are blended to achieve uniform consistency. Many sauce products require continuous slow mixing to prevent separation, especially emulsified products like mayonnaise or salad dressing.
Once the product reaches a stable state, it is transferred into a buffer hopper connected to the filling system. In many production lines, the hopper is equipped with agitation blades to maintain even distribution of solid particles and prevent settling during operation.

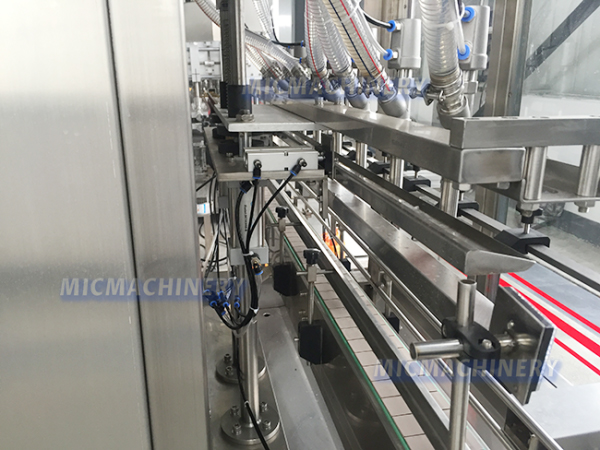

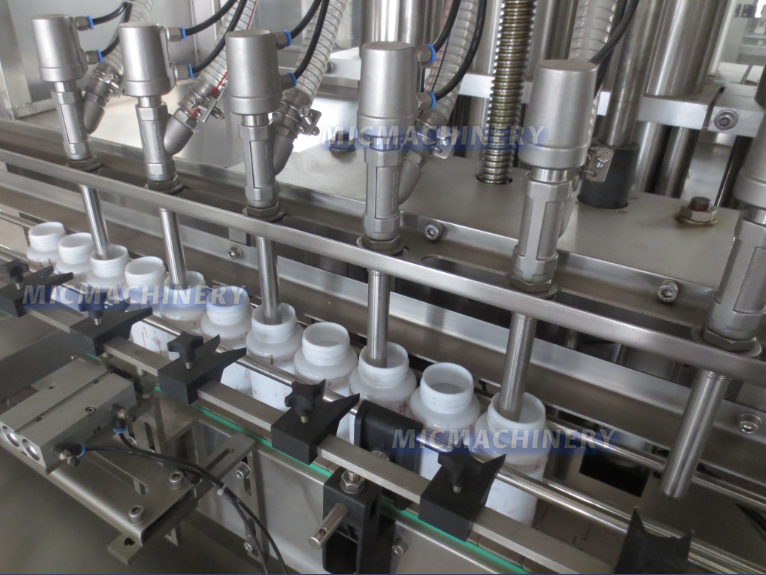

Empty containers are automatically conveyed into the filling station and precisely positioned under the nozzles. Once alignment is confirmed, the piston or servo system begins dispensing a controlled volume of sauce into each container. The system ensures stable pressure to avoid sudden flow surges that could affect product appearance or dosing accuracy.
For thick sauces or products containing particles, large-diameter valves are used to prevent clogging. Bottom-up filling technology is often applied to reduce air bubbles and improve packaging aesthetics. After filling, anti-drip valves ensure clean cut-off without residue on the bottle neck.
Filled containers are then transferred to downstream equipment such as capping machines, induction sealing systems, labeling units, and packaging machines. The entire process is coordinated through a PLC control system to ensure stable timing and consistent production output.
Video Demonstration
Applications
The Sauce Packaging Machine is widely used in the food processing and condiment industries.
Typical applications include:
- Ketchup and tomato sauce
- Chili sauce and hot sauce
- Mayonnaise and salad dressing
- Soy-based sauces
- BBQ and marinade sauces
- Cooking sauces and pasta sauces
- Peanut and nut-based sauces
- Fruit-based sauces
- Thick seasoning pastes
- OEM condiment products
The system supports glass bottles, plastic squeeze bottles, jars, and sachet containers, making it suitable for both retail food packaging and commercial catering supply chains.
Customization Options
Sauce production varies significantly in viscosity, particle size, and emulsification stability. MIC Machinery offers multiple customization options to meet different processing requirements.
Agitated Hopper System
Maintains uniform distribution of solid particles and prevents separation during filling.
Heated Filling System
Suitable for temperature-sensitive sauces requiring controlled viscosity during operation.

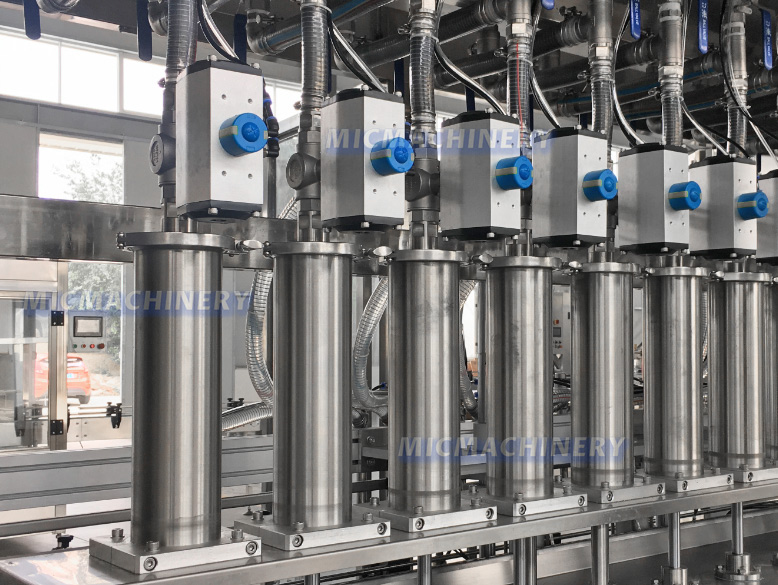

Servo Piston Technology
Provides precise volumetric control for high-value or premium sauce products.
Wide-Channel Anti-Clog Nozzles
Designed for sauces containing chunks, seeds, or pulp.
Bottom-Up Filling System
Reduces air bubbles and improves visual appearance in transparent packaging.
Multi-Format Container Compatibility
Supports quick adjustment between bottles, jars, and squeeze containers.
Full Production Line Integration
Can be connected with mixing tanks, capping systems, labeling machines, and packing equipment.
Maintenance and Operation
Sauce filling systems require regular maintenance due to sticky residues and product buildup. Daily cleaning includes flushing pipelines, removing residue from filling nozzles, and cleaning hopper surfaces to maintain hygiene standards.
Weekly inspections should focus on sealing performance, piston wear, valve movement, and sensor alignment. For agitated systems, mixing components should be checked for smooth operation and balance.
Proper cleaning procedures are especially important when switching between different sauce types to prevent cross-contamination. CIP (Clean-in-Place) systems can significantly reduce downtime and improve cleaning efficiency.
Regular maintenance ensures stable filling accuracy, hygienic production conditions, and long-term machine reliability.
FAQ
Q1: Can the machine handle sauces with solid particles?
Yes. It is designed with wide-channel valves and anti-clog nozzles.
Q2: Is it suitable for thick sauces like mayonnaise?
Yes. Piston and servo systems handle high-viscosity products effectively.
Q3: Can it prevent sauce separation during filling?
Yes. Agitated hopper systems maintain product consistency.
Q4: What containers can be used?
Glass bottles, PET bottles, jars, and squeeze containers.
Q5: Is it food-safe?
Yes. SUS304 and SUS316L food-grade stainless steel are used.
Q6: Can it be integrated into a full production line?
Yes. It supports full automation with capping, labeling, and packaging systems.
Industrial Sauce Packing Machine from MIC Machinery
The MIC Machinery Sauce Packaging Machine is engineered for stable, hygienic, and accurate filling of viscous food products. It is designed for modern food manufacturing environments where product consistency, cleanliness, and production efficiency are essential for commercial-scale operations.
