Ketchup Filling Machine——Reliable Filling Solutions for Tomato Ketchup and Viscous Condiments
Ketchup is one of the most widely packaged condiments in the food industry. Its relatively high viscosity, varying solid content, and sensitivity to filling accuracy require specialized equipment that differs significantly from standard liquid filling systems. A well-designed Ketchup Filling Machine must provide stable product flow, precise volume control, hygienic operation, and compatibility with different bottle and pouch formats.
MIC Machinery manufactures industrial ketchup filling systems designed for small-scale producers, growing food brands, and large-volume condiment factories. The equipment is engineered to handle thick tomato-based products efficiently while maintaining product consistency and packaging quality throughout the production process.
Whether the application involves glass bottles, PET containers, squeeze bottles, jars, or stand-up pouches, the filling system can be configured to match production requirements and packaging specifications.
Machine Parameter
Working Process
The operation of a Ketchup Filling Machine follows a controlled sequence designed to maintain filling consistency.
Volume Measurement

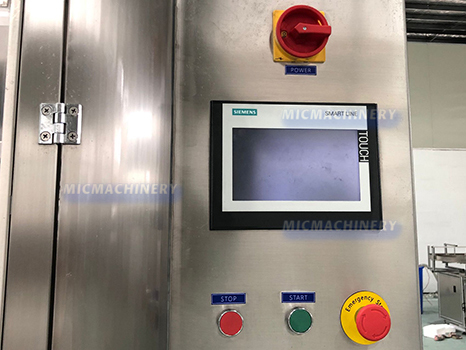

Servo-driven pistons draw a preset amount of ketchup into the dosing cylinders. The filling volume is controlled electronically through the PLC system.
Container Positioning

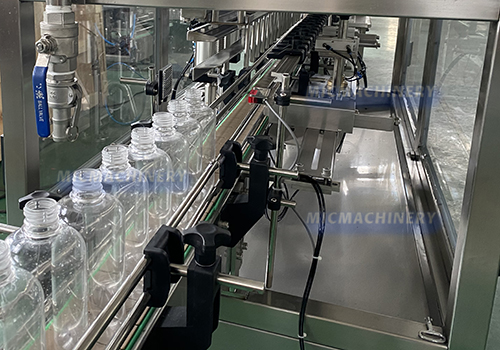

Bottles or containers are transported automatically along the conveyor and positioned beneath the filling nozzles using sensor-based indexing.
Filling Operation

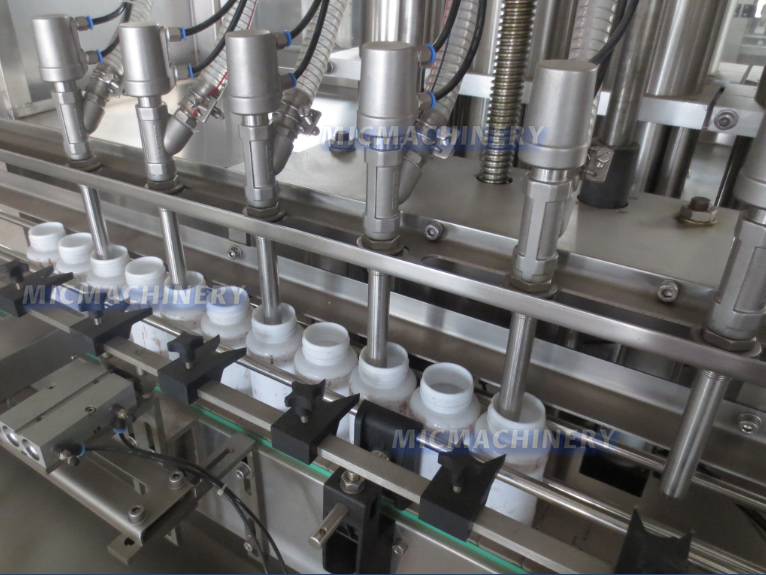

The piston system dispenses ketchup through specially designed nozzles. Filling speed can be adjusted according to viscosity and container geometry. Optional diving nozzles help reduce splashing and maintain clean filling performance.
Container Transfer
After filling is completed, containers move automatically to downstream equipment such as capping machines, induction sealers, labeling machines, or packaging stations.
This controlled process ensures stable production and repeatable filling accuracy throughout long operating cycles.
Machine Overview
Ketchup exhibits non-Newtonian flow characteristics, meaning its viscosity changes under pressure and movement. This makes accurate filling more challenging than water-like liquids.
To address these characteristics, MIC Machinery ketchup filling equipment typically utilizes servo-driven piston filling technology. The system delivers a controlled product volume during each filling cycle while minimizing dripping, stringing, and product waste.
The machine structure is manufactured from food-grade stainless steel and designed according to sanitary production requirements. Product-contact components are smooth, corrosion-resistant, and easy to clean, making them suitable for food processing environments.
The filling system can operate independently or be integrated into a complete packaging line including bottle unscrambling, capping, labeling, coding, and cartoning equipment.
Video Demonstration
Applications
Although designed primarily for ketchup production, the equipment can handle a wide range of viscous food products.
Typical applications include:
- Tomato ketchup
- Tomato paste
- Pizza sauce
- BBQ sauce
- Chili sauce
- Hot sauce
- Garlic sauce
- Mayonnaise
- Salad dressing
- Mustard
- Curry sauce
- Thick marinades
-
With appropriate customization, the machine can also process products containing small particulates such as herbs, spices, seeds, or vegetable fragments.
Customization Options
Food manufacturers often have unique packaging formats, production capacities, and hygiene requirements. For this reason, MIC Machinery offers extensive customization options.
Available configurations include:
Heated Hopper System
Maintains product temperature and flow characteristics during filling operations.
Mixing and Agitation Device
Prevents separation and settling of ingredients during production.
Servo Control Upgrade
Provides enhanced filling precision and easier parameter adjustment.
CIP Cleaning System
Supports automated cleaning procedures and reduces downtime between product changes.
Special Filling Nozzles
Designed for particle-containing products or specific container openings.
Multi-Lane Production
Increases output capacity for large-scale manufacturing facilities.
Complete Packaging Line Integration
Can be connected with bottle washing, capping, labeling, coding, case packing, and palletizing systems.
Each project is configured according to actual production requirements rather than a standard machine layout.
Why Filling Technology Matters for Ketchup Production
Ketchup packaging presents several challenges that directly affect production efficiency and product quality.
Inaccurate filling can result in product giveaway, inconsistent net weight, and customer complaints. Poor nozzle design may cause dripping that contaminates bottles and packaging materials. Inadequate cleaning capability can increase downtime and sanitation risks.
Selecting filling equipment specifically designed for viscous tomato-based products helps manufacturers maintain production consistency while improving operational efficiency.
For facilities planning future expansion, scalable filling systems also provide flexibility to accommodate increasing production volumes without replacing the entire packaging line.
FAQ
1）What filling technology is most suitable for ketchup?
Servo piston filling is generally preferred because it provides stable volume control and performs well with high-viscosity products.
2）Can the machine fill products containing particles?
Yes. Special valves and nozzle designs allow the equipment to handle products containing small solids such as spices, herbs, or vegetable pieces.
3）What packaging formats are supported?
The machine can fill glass bottles, plastic bottles, jars, squeeze bottles, and certain pouch formats.
4）Is cleaning complicated?
No. The sanitary design allows quick disassembly of product-contact components. Optional CIP systems further simplify cleaning procedures.
5）Can the machine be integrated into an existing production line?
Yes. MIC Machinery can configure the equipment to work with existing conveyors, cappers, labelers, and packaging systems.
6）How accurate is the filling process?
Typical filling accuracy ranges from ±0.5% to ±1%, depending on product characteristics and container size.
Industrial Ketchup Filling Machinefrom MIC Machinery
MIC Machinery Ketchup Filling Machines are designed to provide stable filling performance for modern condiment production facilities. By combining accurate dosing technology, hygienic construction, and flexible configuration options, the equipment supports efficient packaging of ketchup and other viscous food products across a wide range of production environments.
