Drum Filling Machine——Industrial Drum Filling System for Liquid Packaging Lines
A Drum Filling Machine is used for accurate filling of 200L steel drums, plastic drums, and other medium-to-large industrial containers. It is commonly applied in chemical plants, lubricant production, coating materials, and liquid food processing where stable dosing and safe handling are required.
In industrial environments, drum filling is not only about volume control. It also involves spill prevention, vapor control, weighing stability, and operator safety. At MIC Machinery, drum filling systems are designed around these practical production requirements rather than simplified laboratory assumptions.
A typical system integrates feeding pumps, weighing platforms, anti-drip filling valves, and PLC-based control logic. Depending on the material, the machine can be configured for corrosive chemicals, flammable solvents, or high-viscosity liquids.
Working Process of Drum Filling Machine
The drum filling process is designed to ensure stable flow control and reduce operator intervention while maintaining accuracy under continuous operation.

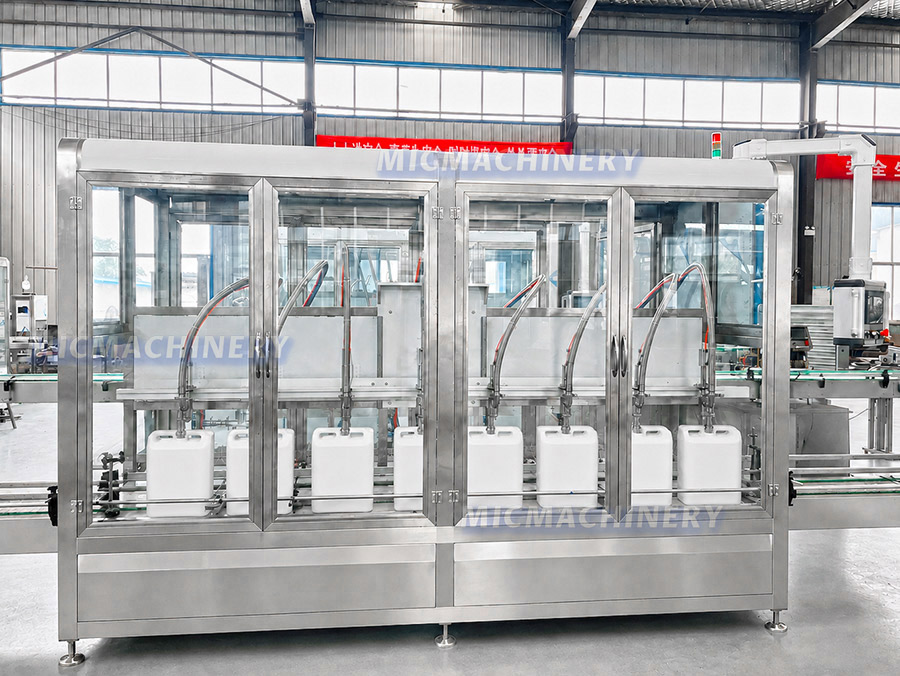

First, empty drums are positioned on the conveyor or weighing platform. Sensors detect the drum alignment and confirm correct positioning before filling begins. In automated systems, the drum clamp system locks the container in place to prevent movement during filling.
Once the drum is fixed, the filling nozzle descends to the correct depth. Subsurface filling is commonly used to reduce foam formation, especially for detergents, solvents, and foaming chemicals. The pump system starts feeding liquid from the storage tank into the drum.
The PLC system controls two-stage filling: a fast filling phase for bulk volume and a slow filling phase for final accuracy adjustment. As the target weight is approached, the system automatically reduces flow speed to avoid overfilling. After completion, the nozzle lifts, and the drum is released for the next process such as capping, labeling, or palletizing.

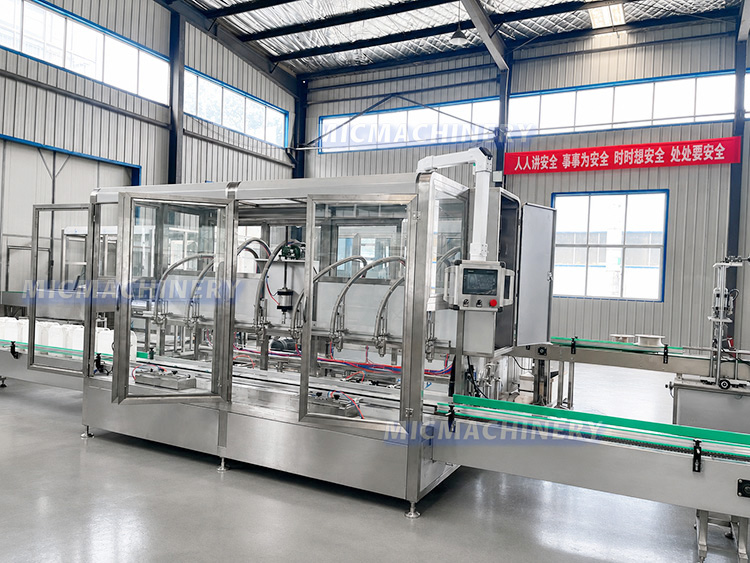

In advanced production lines, the drum filling machine is integrated with conveyor systems and automatic palletizing units to form a continuous packaging line.
Video Demonstration
Applications of Drum Filling Machine
Drum filling equipment is widely used in industries where bulk liquid packaging is required. The machine must adapt to different viscosities, chemical properties, and safety standards.
Chemical Industry
Used for acids, alkalis, solvents, and industrial reagents. Corrosion-resistant materials and sealed filling systems are essential to ensure safe handling.
Lubricant Industry
Suitable for engine oil, hydraulic oil, gear oil, and industrial greases. The system ensures stable weighing accuracy to reduce material loss in high-value oil products.
Paint and Coating Industry
Paint materials often contain pigments and solvents that require controlled filling speed to avoid foaming and sediment disturbance.
Food and Beverage Industry
For edible oil, syrup, and liquid food ingredients, sanitary-grade stainless steel and hygienic pipeline design are required to meet food safety standards.
Agrochemical Industry
Pesticides and liquid fertilizers are typically filled in drums under sealed conditions to reduce operator exposure and environmental risk.
Customization Options
Industrial production environments vary significantly, so drum filling machines are often customized according to factory layout and product requirements.
Common customization options include:
· Single-head or multi-head filling stations
· Explosion-proof electrical system (for flammable liquids)
· Corrosion-resistant PTFE or PVDF pipeline systems
· Heating jacket for high-viscosity materials
· Automatic drum positioning and clamping system
· Integrated capping and sealing unit
· Data recording and production traceability system
· Remote monitoring and IoT connection
For large-scale production lines, MIC Machinery can also design fully integrated systems that combine drum filling with palletizing and warehouse logistics.
Maintenance and Operation
Routine maintenance is essential to ensure long-term stability and accuracy of the drum filling system. In industrial use, small deviations in pumps or sensors can gradually affect production consistency.
Operators should regularly inspect:
Filling nozzle condition and sealing performance
Weighing sensor calibration
Pump pressure stability
Valve response time
Conveyor alignment and wear
Electrical grounding and safety connections
For chemical applications, cleaning procedures must be selected based on product compatibility. Some corrosive liquids require neutralization cleaning cycles to prevent internal pipe damage.
Preventive maintenance is more effective than corrective repair, especially in continuous production environments where downtime can disrupt entire packaging schedules.
FAQ
What container sizes can a drum filling machine handle?
It is mainly designed for 200L drums but can be adjusted for 100L to 300L containers depending on system configuration.
Can the machine handle corrosive chemicals?
Yes. With proper material selection such as SUS316, PTFE sealing, and anti-corrosion pumps, it can safely handle strong chemical liquids.
Is the filling process automatic?
Yes. Most systems use PLC control with automatic weighing, filling, and nozzle movement. Manual systems are also available for small-scale production.
How is filling accuracy ensured?

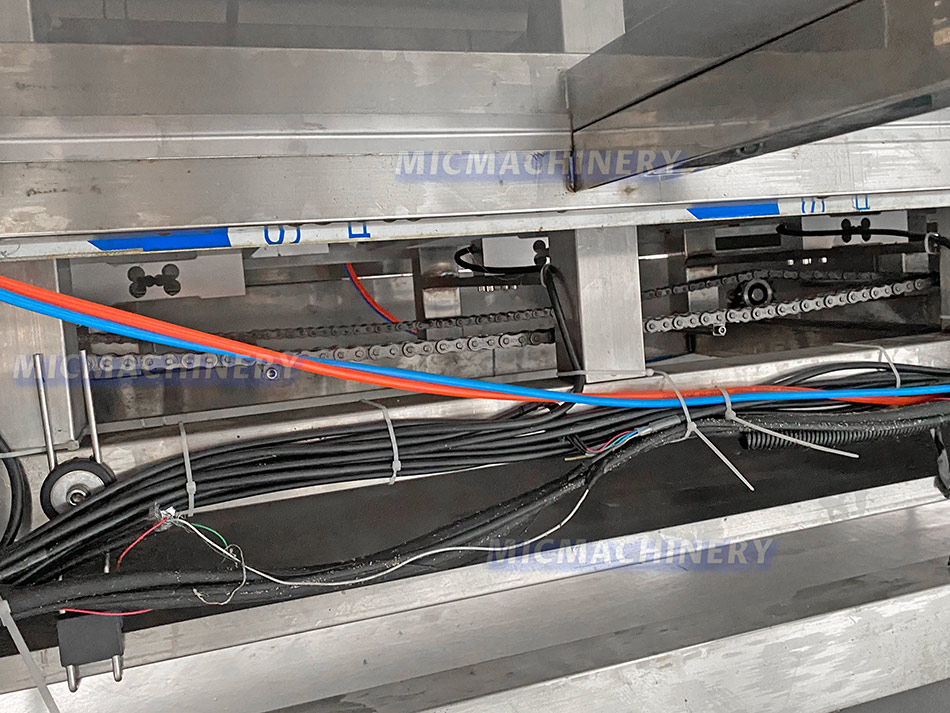

Accuracy is controlled through load cell weighing systems combined with two-stage filling logic (fast + slow filling).
Can it be integrated into a production line?
Yes. The machine can connect with conveyors, capping machines, labeling systems, and palletizing equipment.
Industrial Drum Filling Solutions
A Drum Filling Machine is a core component in bulk liquid packaging lines, where accuracy, safety, and operational stability directly affect production efficiency. The system must perform consistently under different liquid properties and industrial environments.
With engineering experience in liquid packaging systems, MIC Machinery designs drum filling solutions that focus on stable operation, adaptable configuration, and long-term industrial reliability.
