Double Side Labeling Machine——Automatic Front & Back Label Applicator
In modern packaging lines, product information is no longer limited to a single label surface. Regulatory requirements, branding layouts, and multilingual content often demand labeling on both sides of a container. For manufacturers, achieving precise alignment between front and back labels is essential—not only for appearance, but also for consistency in automated inspection systems and downstream packaging.

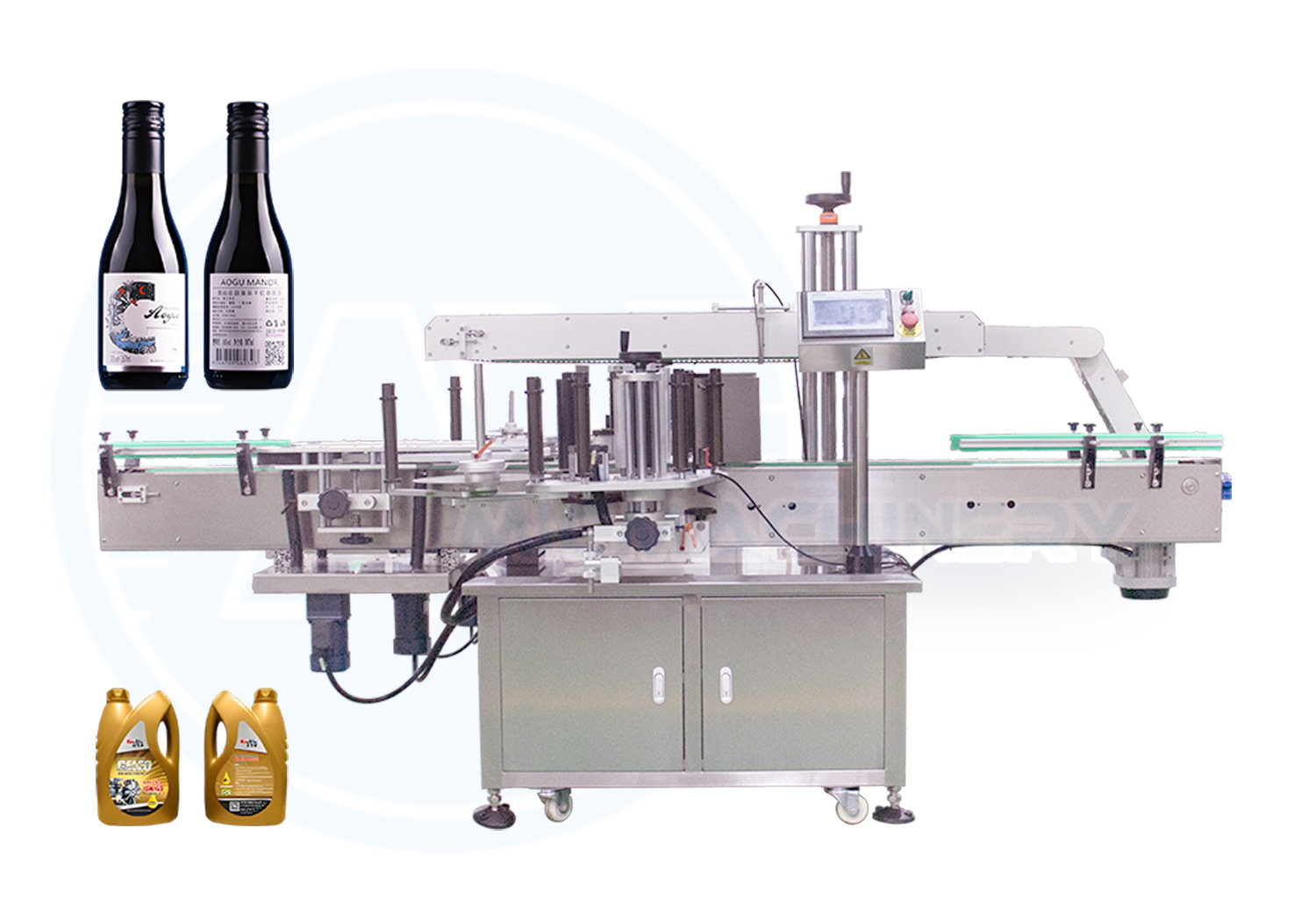

The Double Side Labeling Machine from MIC Machinery is designed for high-accuracy application of self-adhesive labels on both sides of flat, square, oval, and irregular-shaped containers. It is widely used in food, beverage, pharmaceutical, cosmetic, and chemical industries where dual-surface labeling is required for product identification and compliance.
Unlike single-side systems, this equipment synchronizes container positioning, dual labeling heads, and servo-driven dispensing to ensure both labels are applied in perfect alignment, even at continuous production speeds.
Working Process
The labeling process begins when containers enter the conveyor system from upstream equipment such as filling or capping machines. The guide rail system aligns each container centrally before it reaches the labeling station.

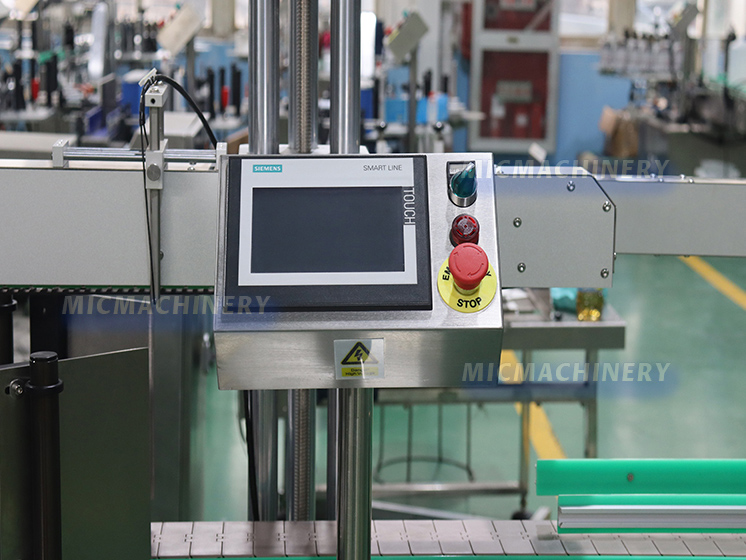

A spacing mechanism ensures uniform distance between containers, which is critical for synchronized dual-label application. Photoelectric sensors detect each container and send signals to the PLC control system.

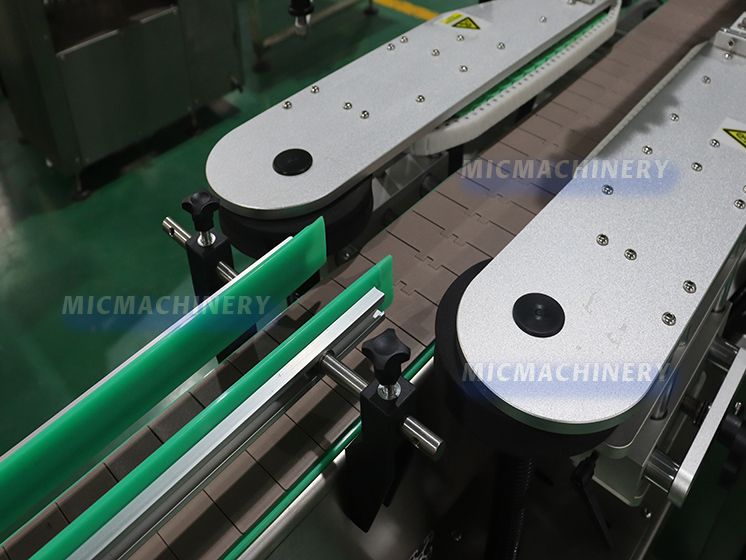

Once the container reaches the labeling zone, clamping belts hold it firmly in position. This stabilizes the container and prevents movement during dual-side labeling.

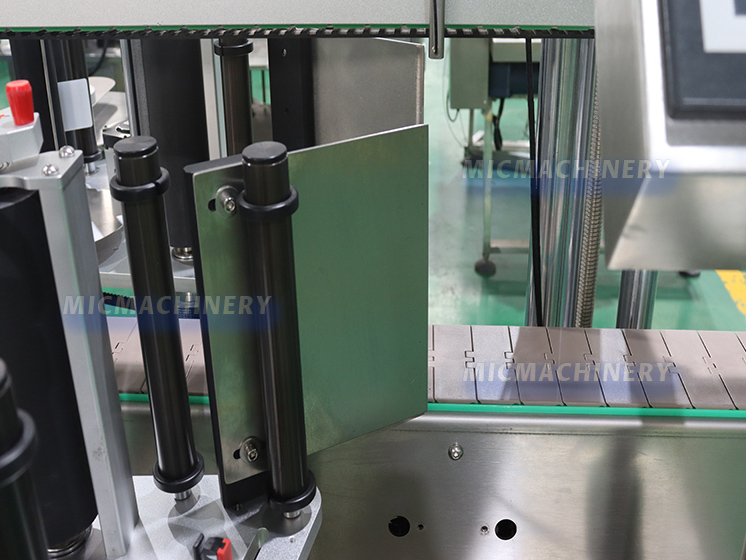

The servo-driven labeling heads on both sides activate simultaneously or in a controlled sequence, depending on configuration. Each label is dispensed at a precisely calculated speed that matches conveyor movement.
As the container passes through the labeling station, pressure rollers apply both labels evenly onto the surface. This ensures strong adhesion and eliminates air bubbles or misalignment.
After labeling, containers continue to downstream processes such as inkjet coding, inspection systems, carton packing, or palletizing. The control system continuously monitors label position, sensor feedback, and servo synchronization to ensure consistent operation.
Video Demonstration
Applications
The Double Side Labeling Machine is widely used in industries requiring dual-surface labeling for branding, regulatory compliance, or multilingual product information.
Typical applications include:
Detergent bottles
Shampoo and conditioner containers
Pharmaceutical bottles
Cosmetic packaging
Food and sauce bottles
Chemical containers
Pesticide bottles
Lubricant packaging
Industrial cleaning products
Health supplement bottles
Household chemical products
The system supports plastic, glass, HDPE, PET, and composite containers with flat, oval, or square shapes.
Customization Options
Different production requirements demand flexible labeling configurations. MIC Machinery offers multiple customization options for double side labeling applications.
Dual Servo Synchronization System
Ensures precise timing between front and back labeling heads.
Adjustable Clamping Conveyor
Stabilizes containers of different shapes during dual-label application.
Vision Inspection System
Optional cameras check label position, alignment, and print quality in real time.
Integrated Coding System
Supports inkjet or laser printing for batch numbers, production dates, and QR codes.
Quick Changeover Design
Allows fast adjustment for different container sizes and label formats.
Multi-Label Capability
Supports additional side or wrap-around labeling if required.
Full Line Integration
The machine integrates with filling, capping, coding, inspection, and packaging systems for fully automated production lines.
Maintenance and Operation
Proper maintenance is essential for maintaining dual-label accuracy and stable machine operation. Daily cleaning should focus on labeling heads, rollers, guide rails, and sensor surfaces to prevent dust or adhesive buildup.
Weekly inspections should verify servo synchronization, belt tension, clamping stability, and sensor calibration. Any worn pressure rollers or belts should be replaced promptly to maintain consistent labeling quality.
Lubrication of moving mechanical parts should be carried out according to the maintenance schedule. Electrical systems, PLC modules, and sensor connections should be checked regularly to ensure stable communication between components.
Preventive maintenance reduces downtime, extends equipment lifespan, and ensures consistent labeling performance in continuous production environments.
FAQ
Q1: What types of containers can the machine handle? It supports flat, square, oval, and irregular-shaped containers made of plastic, glass, or composite materials.
Q2: Can it apply both labels at the same time? Yes. It supports simultaneous or sequential front and back labeling depending on configuration.
Q3: What is the labeling accuracy? Standard accuracy is approximately ±1.0 mm under normal production conditions.
Q4: Is it suitable for high-speed production? Yes. It can operate up to 220 bottles per minute depending on setup.
Q5: Can it integrate into a full production line? Yes. It connects with filling, capping, coding, and packaging equipment.
Q6: Does it support different label materials? Yes. It supports paper, film, transparent, and synthetic adhesive labels.
Double Side Labeling Machine Solutions from MIC Machinery
The MIC Machinery Double Side Labeling Machine provides a stable and precise solution for dual-surface labeling in modern automated packaging systems. With synchronized servo control, reinforced clamping mechanisms, and intelligent sensing technology, it ensures consistent label alignment and reliable performance across a wide range of industrial applications, supporting efficient and high-quality production lines in food, chemical, pharmaceutical, and cosmetic industries.
