Tracking Capping Machine——Servo Continuous Motion Bottle Capping System
As production speeds continue to increase across the food, beverage, cosmetic, pharmaceutical, and chemical industries, conventional stop-and-go capping systems often become a bottleneck. Frequent bottle positioning and intermittent movement can reduce throughput and increase the risk of unstable cap tightening. To overcome these challenges, many manufacturers adopt continuous motion capping technology that allows bottles to be sealed while remaining in motion.
The Tracking Capping Machine developed by MIC Machinery is designed for high-speed production lines where bottles travel continuously through the capping station without stopping. Using synchronized servo control, the capping head tracks the bottle movement during the tightening process, delivering accurate torque while significantly improving production efficiency. The system is suitable for a wide variety of plastic bottles, glass bottles, and chemical containers requiring reliable and repeatable cap application.
Unlike conventional inline cappers, a tracking capping machine combines motion synchronization with precision torque control, making it an excellent solution for modern automated packaging facilities that demand both speed and sealing consistency.
Working Process
The tracking capping process begins when filled bottles enter the conveyor system from the upstream filling machine. Photoelectric sensors detect the position and spacing of each bottle before it reaches the capping station.
Caps are automatically sorted and supplied by the cap feeding system. Once a bottle approaches the capping area, the servo-controlled tracking head accelerates to match the conveyor speed, allowing it to move together with the bottle throughout the tightening process.

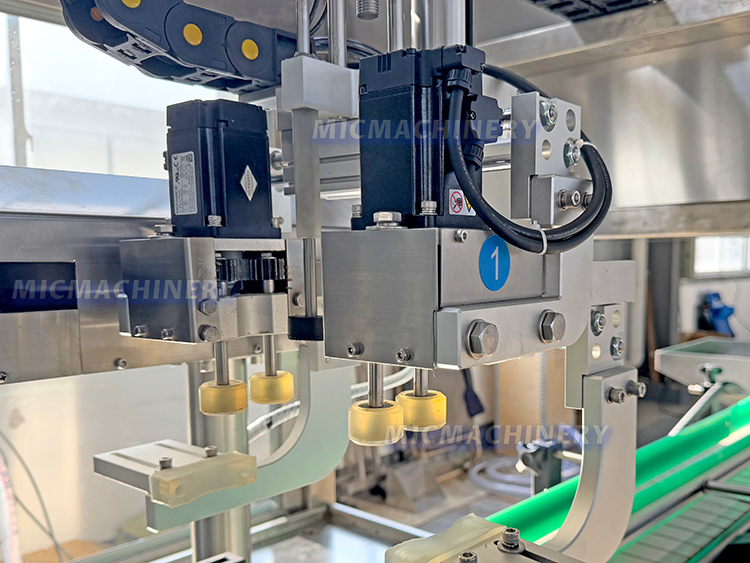

After the cap is positioned on the bottle, the capping head applies downward pressure while simultaneously rotating at the programmed torque value. Because the bottle continues moving during sealing, production flow remains uninterrupted without indexing or stopping.

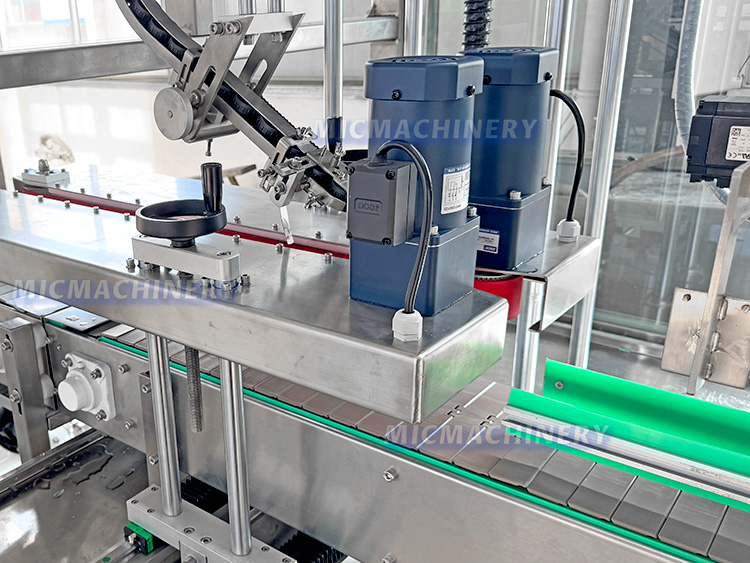

When the desired tightening torque is achieved, the capping head automatically releases the bottle and smoothly returns to its initial position, ready for the next container. Throughout the process, multiple servo motors coordinate horizontal tracking, vertical movement, rotational speed, and torque control to maintain consistent sealing quality.

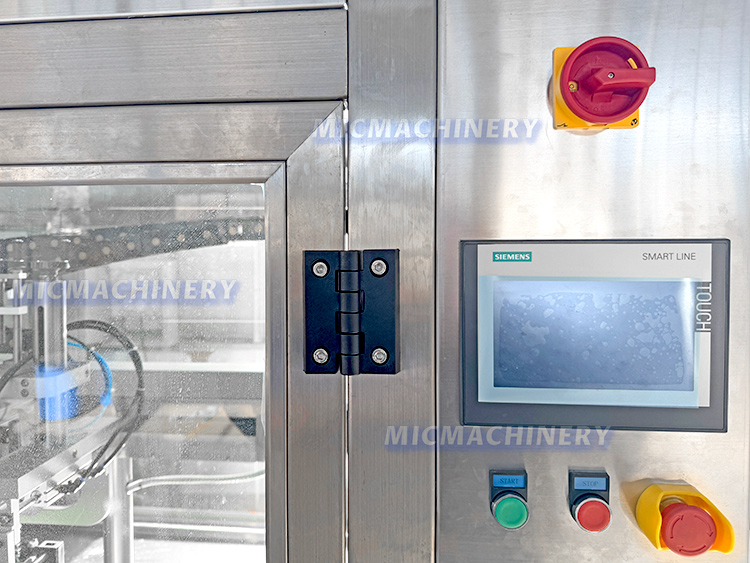

The PLC continuously monitors bottle spacing, cap supply, conveyor speed, and motor synchronization. If a missing cap, bottle jam, or abnormal torque condition is detected, the system automatically generates an alarm or rejects the affected container, ensuring stable production quality.
Video Demonstration
Applications
The Tracking Capping Machine is widely used across industries requiring continuous high-speed bottle sealing.
Typical applications include:
Beverage bottles
Edible oil packaging
Mineral water production
Juice and dairy products
Shampoo and conditioner bottles
Liquid soap packaging
Cosmetic lotions
Pharmaceutical liquid bottles
Household chemical containers
Industrial chemical products
The equipment is compatible with PET bottles, HDPE containers, glass bottles, metal containers, and various rigid packaging formats.
Customization Options
Different production environments require different machine configurations. MIC Machinery offers multiple customization solutions for tracking capping applications.
Servo Tracking Technology
High-speed synchronized bottle tracking improves efficiency while maintaining sealing precision.
Programmable Torque Control
Each product can use independent torque parameters for consistent sealing quality.
Multi-Head Configuration
Available with multiple servo capping heads for increased production capacity.
Automatic Cap Feeding
Supports vibration bowl feeders, centrifugal feeders, and elevator systems depending on cap style.
Vision Inspection System
Optional cameras verify cap placement, orientation, and sealing quality.
Quick Format Changeover
Tool-free adjustments reduce downtime when switching bottle sizes.
Complete Production Line Integration
The machine integrates with filling systems, labeling machines, coding equipment, inspection stations, robotic case packers, and palletizing systems.
Maintenance and Operation
Routine maintenance helps maintain tracking accuracy and production reliability. Daily cleaning should include cap guides, conveyor surfaces, sensors, and capping heads to remove dust or product residue that could affect machine performance.
Weekly inspections should verify servo motor synchronization, torque calibration, tracking rail alignment, and cap feeding operation. Conveyor belts and guide rails should also be checked for wear to maintain accurate bottle positioning.
Mechanical drive systems should be lubricated according to the maintenance schedule. PLC diagnostics, photoelectric sensors, and pneumatic components should be inspected regularly to ensure continuous motion remains synchronized throughout the production process.
Preventive maintenance significantly extends equipment lifespan while minimizing production downtime.
FAQ
Q1: What is the advantage of a tracking capping machine compared with a standard inline capper? The capping head follows the moving bottle, allowing continuous production without stopping the conveyor, resulting in higher output and smoother operation.
Q2: What cap types can the machine handle? It supports screw caps, plastic caps, flip-top caps, sports caps, and many other threaded closures.
Q3: Can different bottle sizes be processed? Yes. The machine supports quick adjustment for different bottle heights and diameters.
Q4: How is torque controlled? Servo motors provide programmable electronic torque control for accurate and repeatable sealing.
Q5: Can the machine be integrated into an automatic packaging line? Yes. It can connect directly with filling machines, labeling systems, coding equipment, inspection systems, and end-of-line packaging solutions.
Q6: Is the machine suitable for high-speed production? Yes. Depending on the configuration, production capacities can reach up to 12,000 bottles per hour while maintaining stable sealing quality.
Tracking Capping Solutions from MIC Machinery
The MIC Machinery Tracking Capping Machine combines continuous motion technology, intelligent servo synchronization, and precise torque control to deliver reliable bottle sealing for modern automated packaging lines. Its ability to maintain consistent cap quality while eliminating stop-and-go operation makes it an ideal solution for manufacturers seeking higher productivity, greater operational flexibility, and dependable long-term performance across food, beverage, pharmaceutical, cosmetic, and chemical industries.
