Piston Filling Machine

Piston Filling Machine——Accurate Volumetric Filling for Liquid and Viscous Products

A Piston Filling Machine is designed for precise volumetric filling of liquids, creams, gels, pastes, and other viscous products into bottles, jars, cans, pouches, and containers. Using a piston-driven dosing system, the machine measures and dispenses a fixed volume of product during each filling cycle, making it one of the most widely used filling technologies in food, cosmetic, pharmaceutical, and chemical manufacturing. MIC Machinery develops piston filling systems for stable operation, repeatable accuracy, and compatibility with products ranging from free-flowing liquids to high-viscosity materials.

Machine Parameters

Working Process

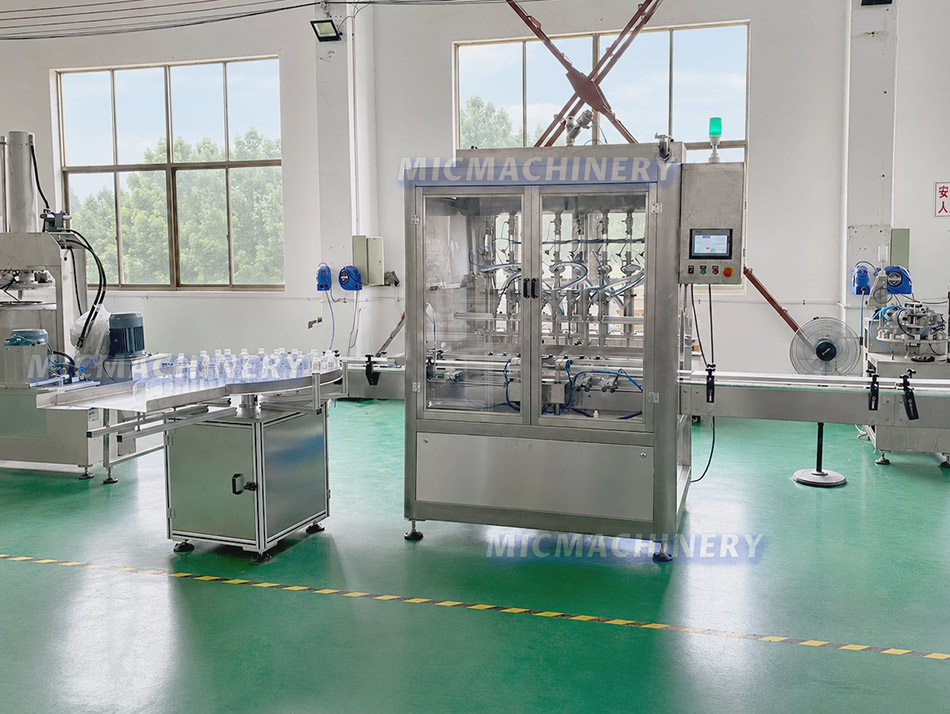

The filling process begins when empty containers are transferred into position by a conveyor system or manual placement station. Sensors verify container location before the filling cycle starts.

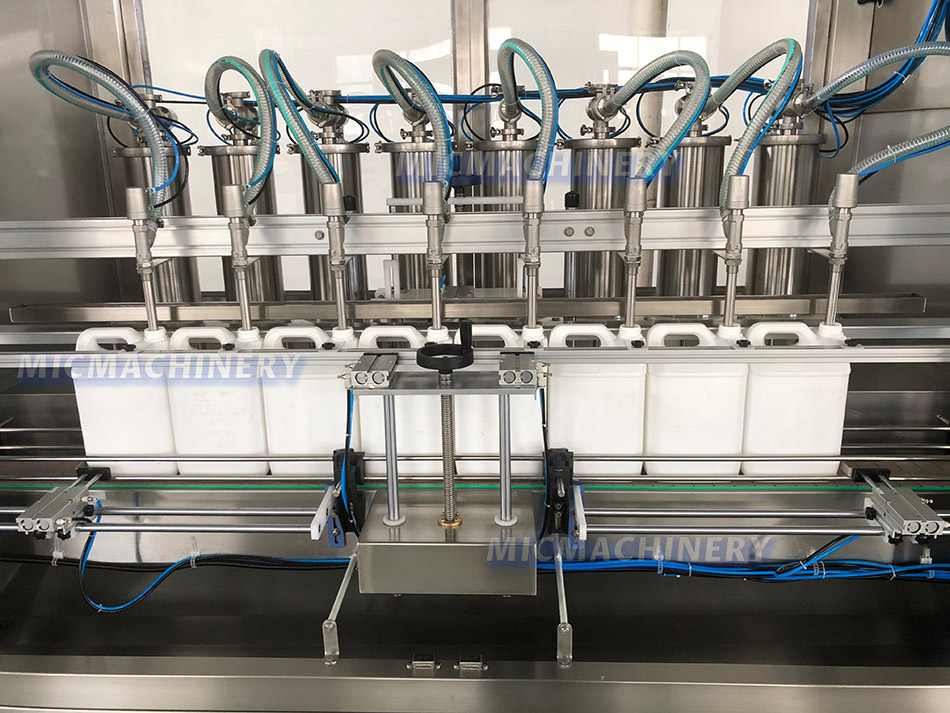

During operation, the piston retracts to draw a predetermined volume of product from the supply hopper or storage tank into the piston cylinder. Once the measured volume is reached, the piston moves forward and dispenses the product through the filling nozzle into the container.

For products that foam or splash easily, diving nozzles can descend into the container during filling and gradually rise as the product level increases. This helps maintain clean filling conditions and improves package appearance.

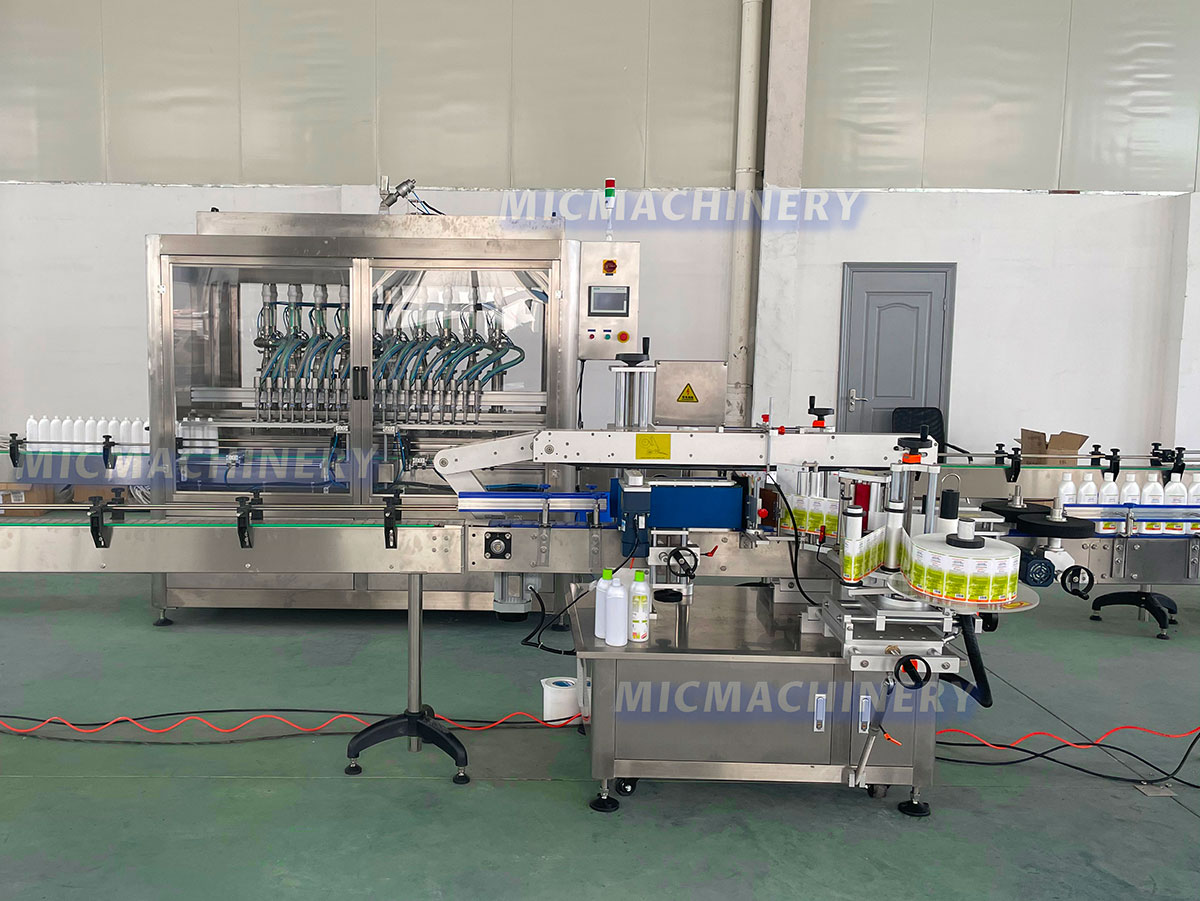

After filling is completed, containers move to downstream equipment such as capping machines, induction sealers, labeling systems, or secondary packaging stations. Modern piston filling machines can operate continuously as part of a fully automated packaging line.

Video Demonstration

Applications

Food Industry

Piston filling machines are commonly used for sauces, ketchup, mayonnaise, honey, peanut butter, syrups, jam, edible oils, and dairy products. Their ability to handle thick and particulate-containing products makes them suitable for many food applications.

Cosmetic Industry

Creams, lotions, shampoos, conditioners, facial cleansers, gels, and personal care products often require volumetric filling accuracy and clean dispensing, making piston technology a practical choice.

Chemical Industry

Industrial chemicals, detergents, lubricants, adhesives, cleaning solutions, and specialty liquids can be filled accurately with appropriate material compatibility and sealing configurations.

Household Products

Liquid soaps, disinfectants, cleaning products, and household maintenance liquids are frequently packaged using piston filling technology.

Customization Options

Every production facility has unique product and packaging requirements. MIC Machinery offers multiple customization options to optimize filling performance.

Available options include:

· Single-head or multi-head filling systems

· Servo-driven piston control

· Pneumatic piston operation

· Heated product tanks

· Mixing hoppers

· Automatic bottle feeding systems

· Diving nozzle technology

· Anti-drip nozzle design

· CIP cleaning systems

· Explosion-proof electrical configurations

Maintenance and Daily Operation

Routine maintenance helps maintain filling accuracy and maximize equipment lifespan.

Operators should regularly inspect:

· Piston seals and O-rings

· Product valves

· Filling nozzles

· Pneumatic components

· Servo motors and drives

· Product transfer pipelines

· Sensors and electrical connections

· Hopper cleanliness

Products with high sugar content, sticky ingredients, or suspended particles require more frequent cleaning to prevent buildup inside cylinders and valves.Scheduled preventive maintenance reduces unexpected downtime and helps maintain consistent filling performance over long production runs.

FAQ

1）What is the difference between pneumatic and servo-driven systems?

Pneumatic systems offer reliable operation at lower cost, while servo-driven systems provide greater precision, flexibility, and recipe control.

2）How does piston filling ensure accuracy?

The piston cylinder measures a fixed volume during each cycle, allowing consistent volumetric filling regardless of container shape.

3）Can the machine fill both thin and thick products?

Yes. By selecting the appropriate piston size and valve configuration, the machine can handle a wide viscosity range.

4）Is automatic operation available?

Yes. Fully automatic systems can integrate filling, capping, labeling, and packaging into a complete production line.

5）Can the machine handle products containing particles?

Yes. Special valve and nozzle designs are available for products containing fruit pieces, vegetable particles, or other suspended solids.

Industrial Piston Filling Solutions

A Piston Filling Machine provides accurate volumetric dosing for a wide range of liquid and viscous products while maintaining production efficiency and filling consistency. Its ability to handle varying viscosities, combined with flexible configuration options, makes it a common choice across food, cosmetic, and chemical industries. MIC Machinery supplies piston filling solutions designed for long-term industrial operation, stable accuracy, and seamless integration into modern packaging lines.
