Paste Filling Machine——Industrial High-Viscosity Product Filling System
Paste products are widely used across the food, cosmetic, pharmaceutical, and chemical industries. Unlike free-flowing liquids, pastes have high viscosity, complex flow characteristics, and often contain suspended particles. These properties make accurate filling more challenging and require specialized equipment capable of handling dense materials without compromising speed, precision, or product quality.
The Paste Filling Machine from MIC Machinery is designed to fill a wide range of thick and semi-solid products with consistent accuracy. Whether packaging tomato paste, chili paste, cosmetic cream, adhesive compounds, or industrial grease, the machine delivers reliable volumetric control and stable production performance. The equipment is engineered for continuous operation while maintaining hygienic standards, reducing product waste, and supporting flexible packaging requirements.
Machine Parameter
Working Process
The paste filling process begins with transferring the product from a storage or mixing tank into the machine hopper. For highly viscous materials, an optional agitation system helps maintain uniform consistency and prevents ingredient separation during operation.

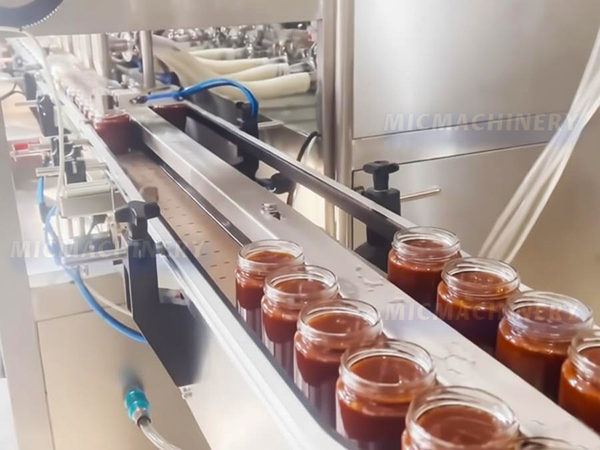

As containers enter the filling station via the conveyor system, sensors verify their position beneath the filling nozzles. Once correctly aligned, the filling cycle starts automatically.

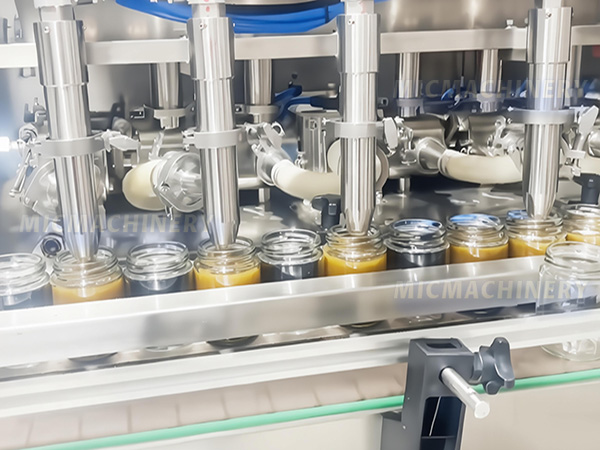

The piston mechanism draws a measured volume of paste from the hopper and transfers it to the nozzle assembly. During discharge, the product is pushed smoothly into the container under controlled pressure. Filling speed can be adjusted to accommodate different viscosities and container dimensions.
Special anti-drip nozzles ensure a clean cut-off at the end of each filling cycle, preventing material from stringing or contaminating the container neck. After filling, containers move to the next stage for sealing, capping, labeling, or secondary packaging.
The entire process is managed through a PLC-based control system that synchronizes filling heads, conveyor movement, and production parameters for stable operation.
Video Demonstration
Applications
The Paste Filling Machine is suitable for a wide variety of industries and products.
Food Industry
- Tomato paste
- Chili paste
- Garlic paste
- Curry paste
- Peanut butter
- Chocolate spread
- Jam and fruit paste
- Honey-based mixtures
Cosmetic Industry
- Face cream
- Beauty masks
- Hair treatment paste
- Cosmetic gels
- Body butter
Pharmaceutical Industry
- Medicinal ointments
- Herbal paste formulations
- Topical creams
Chemical Industry
- Industrial grease
- Sealants
- Adhesives
- Lubricating compounds
- Construction paste materials
The machine's versatility makes it suitable for both small-batch specialty production and large-scale industrial manufacturing.
Customization Options
Because paste products vary greatly in viscosity and packaging requirements, MIC Machinery offers extensive customization options.
Heated Hopper System
Maintains product temperature and improves flowability for materials that become thicker at lower temperatures.
Mixing Hopper
Prevents ingredient separation and keeps particulate materials evenly distributed during filling.
Servo Filling Technology
Provides enhanced accuracy and easy adjustment through the touch-screen interface.
Multiple Nozzle Configurations
Available in single-head, dual-head, and multi-head layouts depending on required production output.
Bottom-Up Filling
Suitable for products prone to air entrapment or surface defects.
Tube Filling Integration
Supports aluminum tubes, laminated tubes, and plastic tube packaging.
Complete Production Line Integration
Can be combined with capping machines, labeling systems, induction sealers, coding machines, and carton packaging equipment.
Maintenance and Operation
Regular maintenance is essential when handling thick materials that may leave residues inside the filling system.
Daily cleaning should include hopper surfaces, filling cylinders, nozzles, and product pipelines. Residual paste should be removed promptly to prevent hardening or contamination.
Weekly inspections should focus on piston seals, pneumatic components, valves, and sensor operation. Any worn seals should be replaced to maintain filling accuracy and prevent leakage.
For machines equipped with servo systems, routine checks of motor performance and positioning accuracy are recommended. Lubrication schedules should follow manufacturer guidelines to ensure long service life.
A well-maintained machine not only improves reliability but also reduces product waste and unexpected downtime.
FAQ
Q1: What types of paste products can this machine fill?
The machine can handle food pastes, cosmetic creams, pharmaceutical ointments, adhesives, industrial grease, and many other high-viscosity products.
Q2: Can it fill products containing particles?
Yes. The filling system can be configured for products containing vegetable pieces, fruit pulp, spices, seeds, or other suspended particles.
Q3: Is heating required?
Not always. However, heated hoppers are recommended for products that become too thick at room temperature.
Q4: How accurate is the filling system?
Typical filling accuracy ranges from ±0.5% to ±1%, depending on product characteristics and container size.
Q5: Can the machine handle different container sizes?
Yes. The machine can be adjusted for various bottles, jars, tubes, and pouches.
Q6: Is CIP cleaning available?
Yes. Optional CIP (Clean-In-Place) systems are available for applications requiring frequent cleaning and strict hygiene standards.
Industrial Paste Filling Machine from MIC Machinery
The MIC Machinery Paste Filling Machine is designed for manufacturers processing high-viscosity products that require reliable dosing, stable production performance, and hygienic operation. With flexible configuration options and compatibility across multiple industries, it provides an effective solution for modern paste packaging applications.
