Carton Packing Machine——Automatic Cartoning Equipment for Industrial Packaging
Carton packing is an important process in modern manufacturing because it provides product protection, improves transportation efficiency, and creates standardized packaging for storage and distribution. A Carton Packing Machine is designed to automatically load products into cartons, complete carton forming, sealing, and output processes with consistent speed and accuracy.
MIC Machinery develops automatic carton packing solutions for food, beverage, chemical, pharmaceutical, daily chemical, and industrial product manufacturers. The equipment is designed according to different product characteristics, carton sizes, production speeds, and packaging requirements.
Compared with manual carton packing, automatic cartoning equipment provides better packaging consistency, reduces labor dependency, and improves production efficiency. It can be used as a standalone machine or integrated into complete production lines with filling machines, labeling machines, conveyors, and palletizing systems.
Material: corrugate, carton indentation thread thickness is moderate, width is not bigger than 2mm
Working Process
The carton packing process starts with flat cartons being loaded into the carton magazine. The carton feeding mechanism picks up individual cartons and transfers them to the forming section.
The carton is opened and shaped into a three-dimensional box through mechanical forming components. Sensors check whether the carton has been correctly opened before product loading begins.
At the same time, products are transported through the feeding conveyor. Depending on the packaging requirement, products may be arranged individually or grouped before entering the carton.
The pushing mechanism transfers products accurately into the carton. For fragile products or products with special shapes, customized loading devices can be installed to ensure smooth handling.
After loading, the carton enters the closing section. The machine folds carton flaps and seals them using glue or mechanical locking methods according to carton design.
The finished cartons are then discharged through the conveyor system for further processes such as labeling, inspection, case packing, or palletizing.
The entire operation is controlled automatically, with synchronized movement between carton forming, product feeding, and sealing processes to maintain stable production performance.
Video Demonstration
Applications
Carton Packing Machines are widely used in industries where products require organized secondary packaging and transportation protection.
Food Industry
The machine is commonly used for:
Sauce bottles

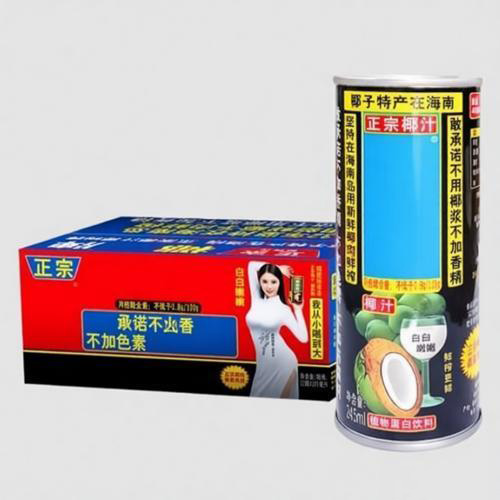

Beverage containers
Food pouches
Snack products
Seasoning packages
Beverage Industry
Applications include:

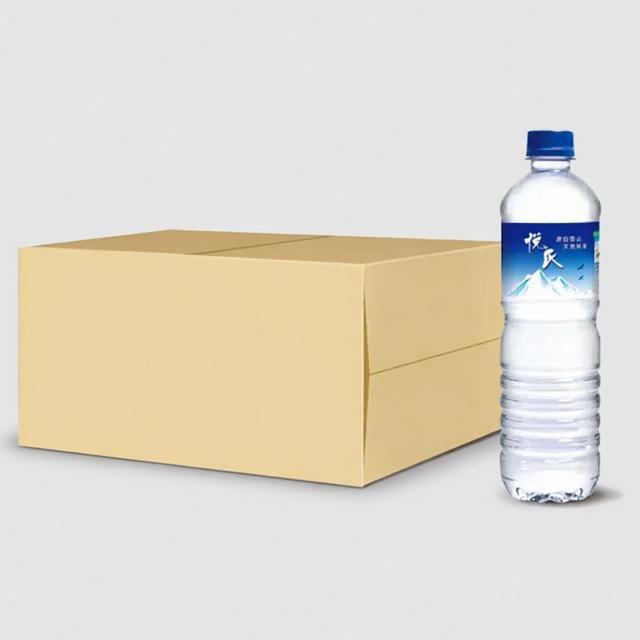

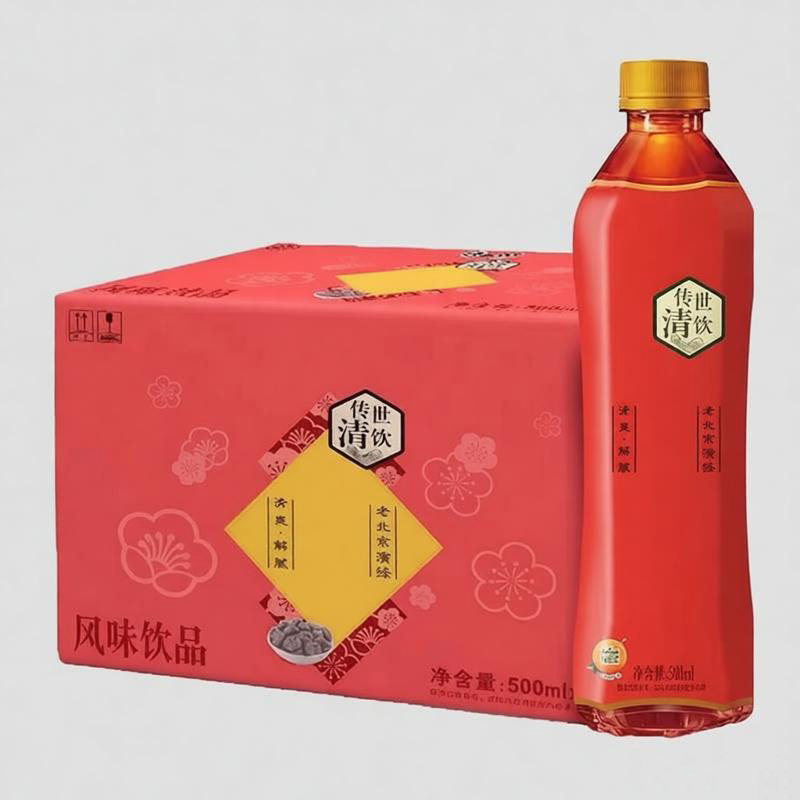

Juice bottles
Water bottles
Dairy products
Beverage multipacks
Pharmaceutical Industry
Cartoning applications include:
Medicine boxes
Healthcare products
Small bottles
Medical packaging
Chemical Industry
The machine is suitable for:
Detergent products
Cleaning chemicals
Lubricant containers
Industrial chemical packages
Daily Chemical Industry
Common products include:
Shampoo bottles
Cosmetic products
Personal care items
The equipment can handle different packaging formats through customized feeding and carton loading systems.
Customization Options
MIC Machinery develops carton packing machines based on specific customer production requirements.
For different product shapes and sizes, the feeding system can be customized to ensure stable product transfer. Special designs are available for bottles, tubes, pouches, jars, and irregular products.
Carton dimensions, sealing methods, and loading arrangements can also be adjusted according to packaging requirements. Customers can choose between glue sealing, tuck-in sealing, or other carton closing methods.
For high-speed production lines, the machine can be equipped with servo control systems, automatic product sorting devices, and inspection functions.
Additional options include:
Date and batch coding systems
Barcode scanners
Vision inspection systems
Automatic carton supply systems
Reject devices
Conveyor integration
The machine can be connected with filling machines, labeling equipment, and palletizing systems to create a complete automated packaging solution.
Maintenance and Operation
Regular maintenance is important for ensuring stable carton packing performance and reducing unexpected downtime.
The carton feeding mechanism should be inspected regularly to ensure smooth carton separation and accurate carton opening. Dust or paper residue should be removed from the carton storage area and forming components.
The product feeding system requires regular inspection because incorrect product positioning may affect loading accuracy. Sensors and guide rails should be kept clean and properly adjusted.
Mechanical components such as chains, belts, bearings, and transmission parts should be lubricated according to the maintenance schedule. Worn parts should be replaced promptly to prevent production interruptions.
Electrical components, including PLC controllers, servo drives, motors, and touchscreen systems, should be checked regularly. Maintaining proper electrical conditions helps extend equipment service life.
A preventive maintenance plan improves machine reliability and ensures continuous production performance.
FAQ
Q1: What is a carton packing machine? A carton packing machine is automatic equipment that forms cartons, loads products, and seals cartons for transportation and storage.
Q2: What products can be packed by this machine? It can pack bottles, tubes, pouches, boxes, jars, and many other packaged products.
Q3: Can the machine handle different carton sizes? Yes. The machine can be adjusted or customized according to different carton dimensions.
Q4: What is the production speed of a carton packing machine? The speed depends on the machine model, product size, and packaging requirements.
Q5: Can it be connected with a filling machine? Yes. It can integrate with filling, labeling, inspection, and palletizing equipment.
Q6: What sealing methods are available? Common methods include tuck-in sealing and hot melt glue sealing.
The MIC Machinery Carton Packing Machine provides an automated solution for efficient secondary packaging across multiple industries. With flexible configurations, accurate control systems, and customized designs, it helps manufacturers improve packaging consistency, reduce manual operations, and maintain stable production performance.
