Single Side Labeling Machine——Automatic Flat & One-Side Label Applicator
In many packaging lines, not every container requires full wrap-around labeling. Products such as flat bottles, rectangular containers, cartons, and uniquely shaped packaging often need labeling on only one surface. For these applications, accuracy and alignment on a single plane are more important than rotation or wrap control.
The Single Side Labeling Machine from MIC Machinery is designed specifically for precise application of self-adhesive labels on one side of flat, oval, square, or irregular containers. It is widely used in food, beverage, pharmaceutical, cosmetic, and chemical industries where consistent front-face labeling is required for branding, product information, or regulatory compliance.
Unlike round bottle systems that rely on rotation, this machine focuses on stable product positioning, synchronized label feeding, and accurate pressure application on flat surfaces.
Working Process

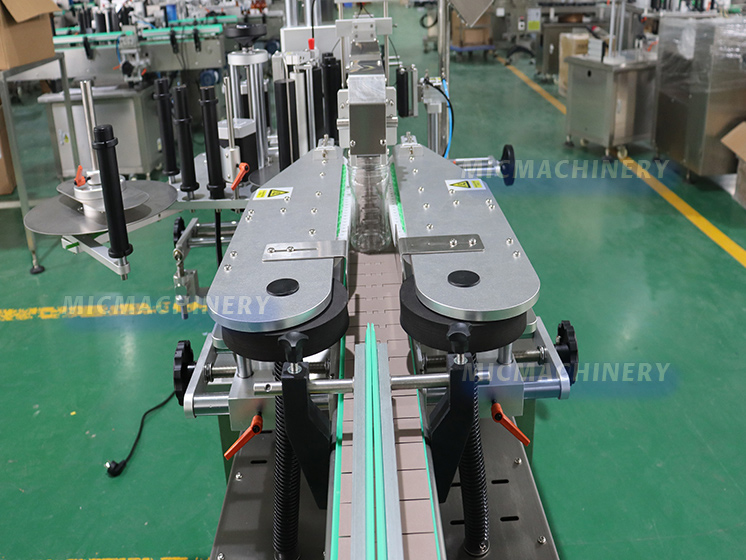

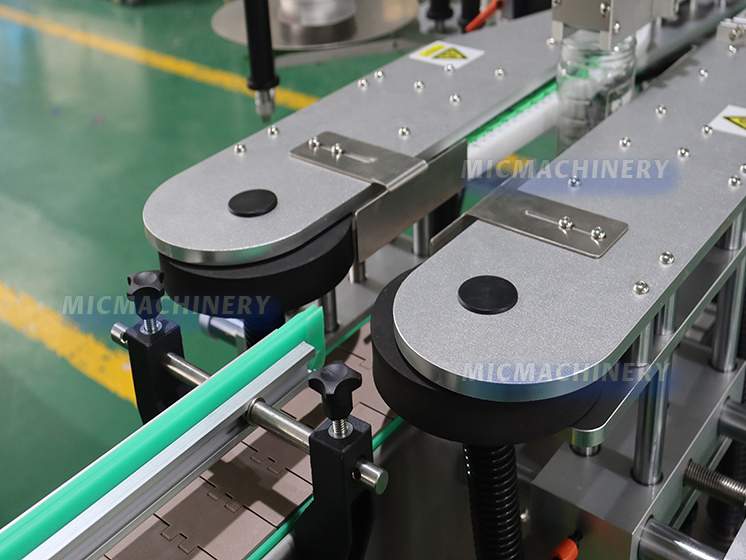

The labeling process begins when containers are fed into the conveyor system from upstream equipment or manual loading. Guide rails and positioning belts ensure that each container is aligned correctly before entering the labeling station.
A spacing mechanism separates products evenly to maintain consistent labeling timing. Photoelectric sensors detect the presence of each container and trigger the labeling system at the precise moment required.

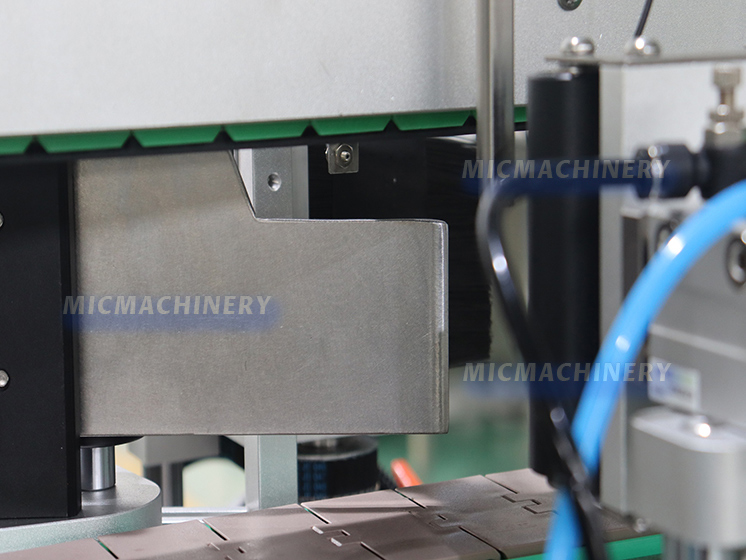

As the container moves through the labeling zone, the servo-driven labeling head dispenses the label at a controlled speed. Because the container does not require rotation, accuracy depends entirely on timing synchronization and surface positioning control.
Pressure belts or soft rollers then press the label firmly onto the flat surface of the container. This ensures complete adhesion without air bubbles, wrinkles, or misalignment.
After labeling, products continue along the conveyor to downstream processes such as inkjet coding, inspection, cartoning, or packaging. The PLC system continuously monitors sensor input, label position, and conveyor speed to ensure stable operation.
Video Demonstration
Applications
The Single Side Labeling Machine is widely used in industries requiring precise surface labeling rather than full wrap-around application.
Typical applications include:

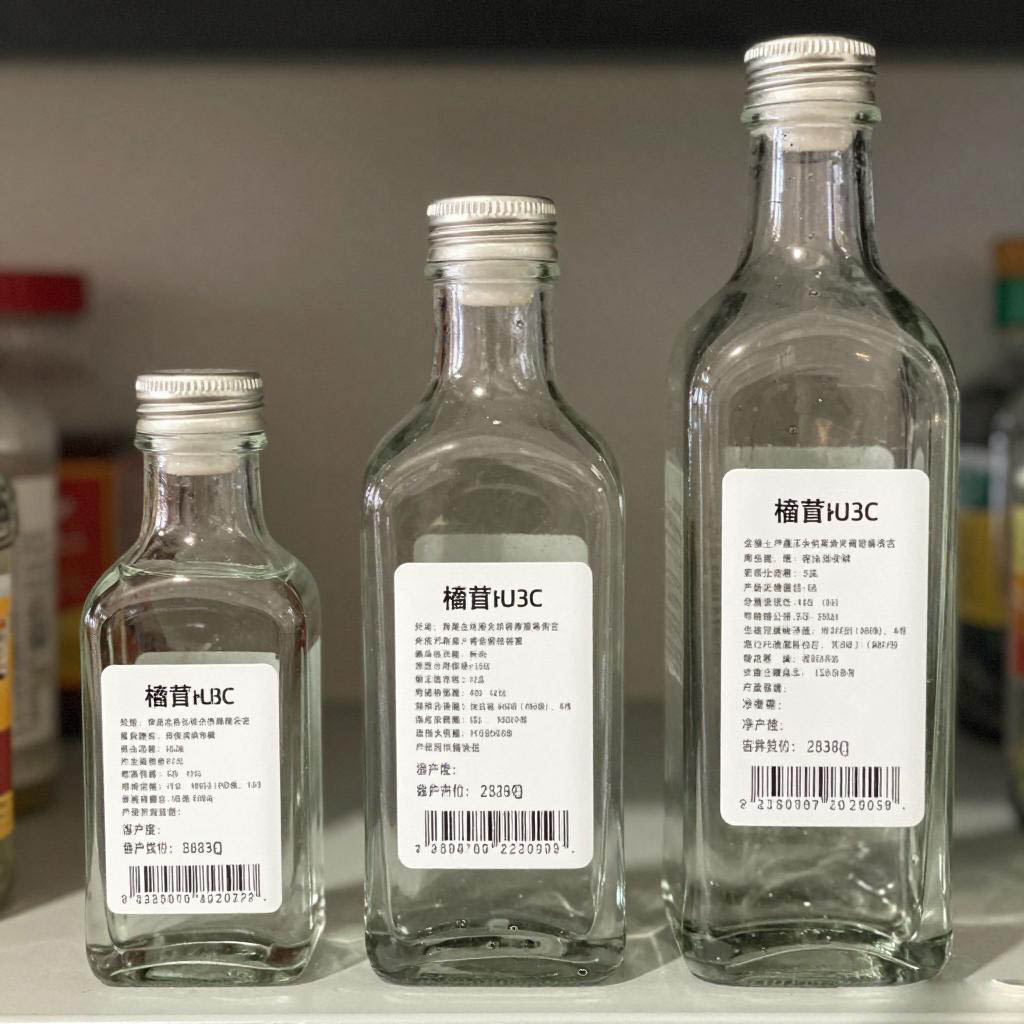

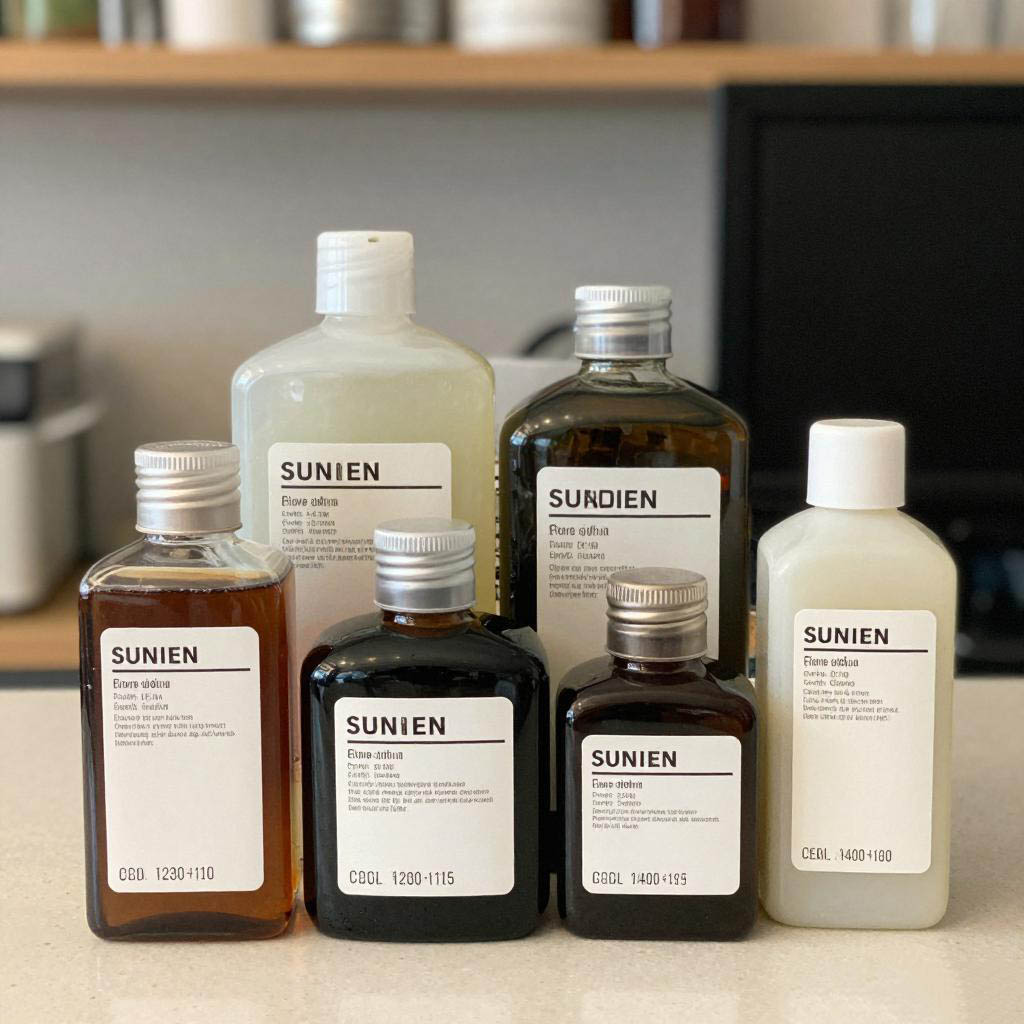

Flat cosmetic bottles
Shampoo and conditioner containers
Household detergent bottles
Pharmaceutical cartons and bottles
Food packaging boxes

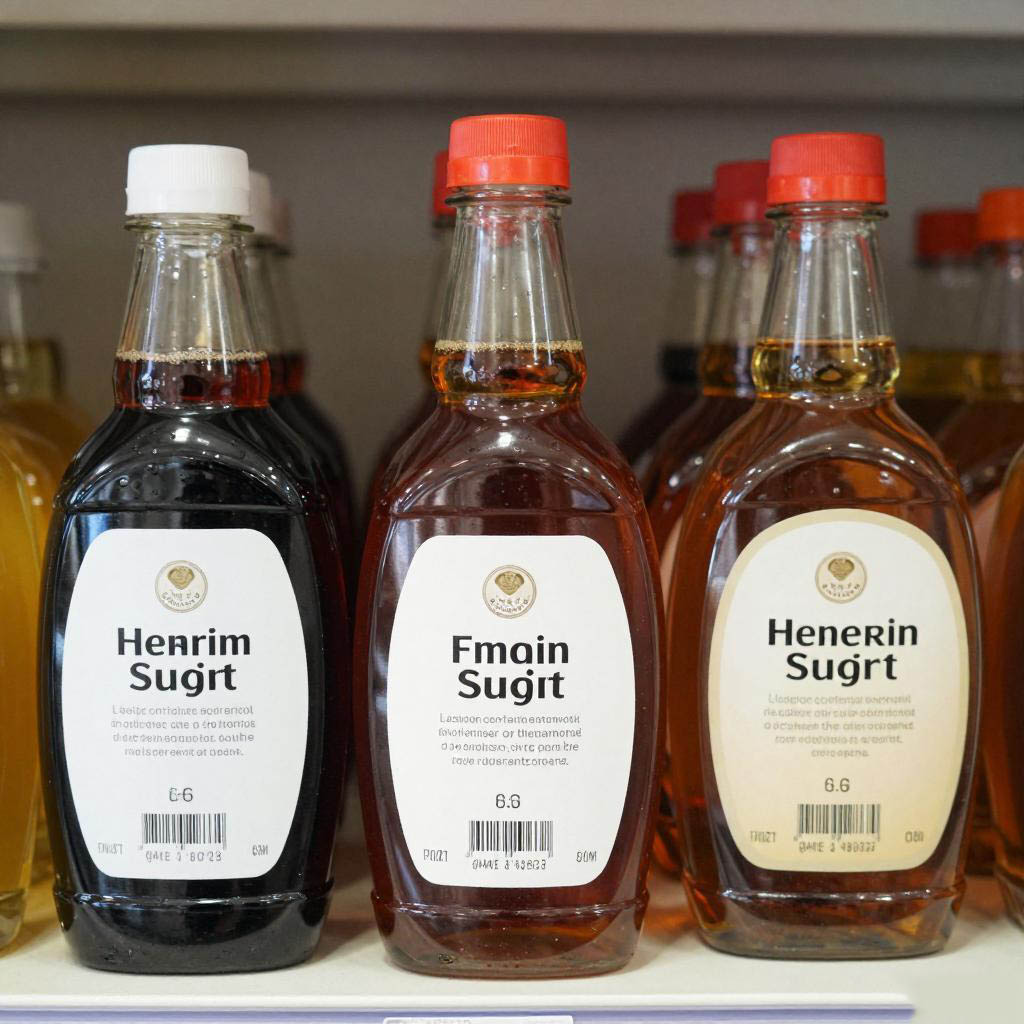

Sauce and condiment containers
Chemical flat bottles
Lubricant containers
Pesticide packaging
Health supplement boxes
Industrial product packaging
The system supports plastic, glass, cardboard, and composite containers with flat or structured surfaces.
Customization Options
Different production environments require flexible labeling configurations. MIC Machinery provides multiple customization options for single side labeling applications.
High-Precision Servo Control
Ensures accurate label placement even at varying production speeds.
Multi-Surface Labeling Capability
Optional modules allow front, back, or corner labeling.
Vision Inspection System
Cameras verify label position, alignment, and print quality in real time.
Integrated Coding System
Supports inkjet or laser printing for batch numbers, expiration dates, and QR codes.
Adjustable Conveyor System
Quick adjustment guides support different container widths and heights.
Soft Pressure Application System
Ensures smooth adhesion on delicate or flexible packaging materials.
Full Line Integration
The machine can be connected with filling machines, capping systems, coding units, inspection systems, and carton packaging lines.
Maintenance and Operation
Regular maintenance is important for maintaining labeling accuracy and machine stability. Daily cleaning should focus on label paths, rollers, conveyor belts, and sensor surfaces to prevent adhesive buildup or dust accumulation.
Weekly inspections should check servo synchronization, belt tension, sensor calibration, and guide rail alignment. Any worn rollers or pressure belts should be replaced promptly to ensure consistent labeling quality.
Lubrication of moving mechanical components should follow the recommended maintenance schedule. Electrical connections, PLC systems, and sensor interfaces should also be checked regularly to ensure stable communication and operation.
Q1: What types of containers can this machine label? It supports flat, square, oval, and irregular-shaped containers made of plastic, glass, or cardboard.
Q2: Can it apply labels on more than one side? Yes. It can be configured for front, back, or corner labeling depending on requirements.
Q3: What is the labeling accuracy? Standard accuracy is approximately ±1.0 mm depending on product and label type.
Q4: Is it suitable for high-speed production? Yes. It can operate up to 200 bottles per minute depending on configuration.
Q5: Can it integrate with a full production line? Yes. It works with filling, capping, coding, inspection, and packaging equipment.
Q6: Does it support different label materials? Yes. It supports paper, film, transparent, and synthetic adhesive labels.
Single Side Labeling Machine Solutions from MIC Machinery
The MIC Machinery Single Side Labeling Machine provides a stable and precise solution for flat-surface labeling in modern packaging lines. With servo-controlled dispensing, intelligent sensor coordination, and a robust industrial structure, it ensures consistent label placement across a wide range of container types, helping manufacturers achieve reliable output quality in automated production environments.
