How Does a Ketchup Filling Machine Improve Sauce Production Efficiency?
How Does a Ketchup Filling Machine Improve Sauce Production Efficiency?
A Ketchup Filling Machine is an automated filling solution designed for high-viscosity food products such as ketchup, tomato sauce, chili sauce, and condiment pastes. Unlike ordinary liquid fillers, it requires precise control of material flow, viscosity changes, and filling accuracy. MIC Machinery develops filling systems with piston filling technology, PLC control, and sanitary stainless steel structures to help sauce manufacturers achieve stable production, reduce material waste, and improve packaging efficiency.
Why Is Choosing the Right Ketchup Filling Machine Important for Sauce Manufacturers?
Ketchup has complex rheological properties. Its high viscosity, shear sensitivity, and potential presence of particles make the filling process more challenging than water-based products. A suitable automatic ketchup filling machine must maintain consistent filling volume while preventing dripping, air bubbles, and product separation.
For industrial sauce production plants, the filling system is usually integrated with upstream mixing tanks, heating systems, storage hoppers, capping machines, and labeling equipment to create a complete ketchup bottling line.
Key Factors Affecting Filling Performance
| Factor | Industrial Requirement |
| Material Viscosity | Stable feeding for thick sauces and pastes |
| Filling Accuracy | Precise volume control to reduce product loss |
| Hygiene Standard | Food-grade stainless steel contact parts |
| Production Speed | Adaptable to small and large batch production |
| Cleaning Efficiency | Easy disassembly and CIP-compatible design |
How Does a Ketchup Filling Machine Work?
|

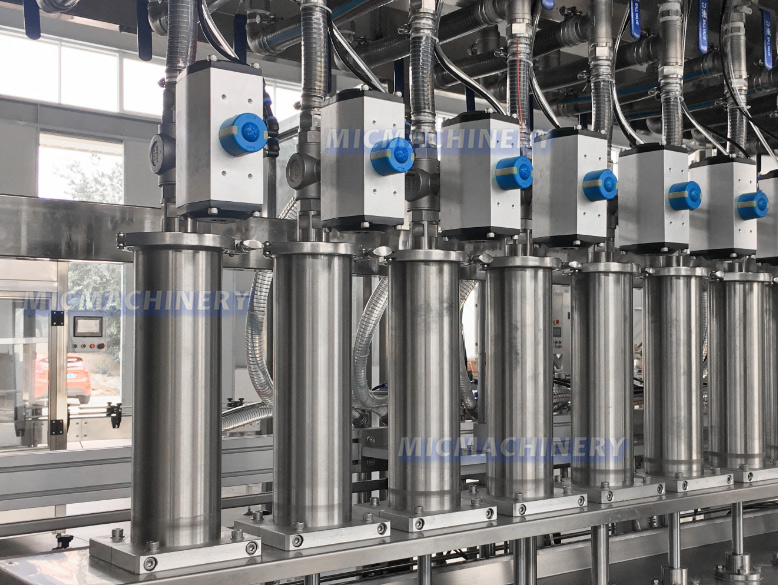

Piston Filling Technology for High-Viscosity Products The core technology of most ketchup bottle filling machines is piston filling. The piston creates controlled suction and discharge cycles, allowing accurate measurement even when handling thick materials. ----- Compared with gravity filling systems, piston fillers provide better adaptability for sauces with inconsistent flow characteristics. The filling volume can be adjusted according to bottle size, packaging requirements, and production capacity. |
 |
 |

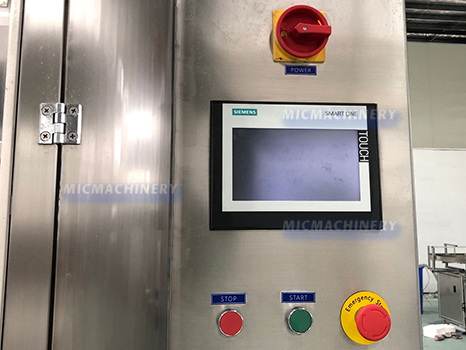

PLC Control and Automation System Modern ketchup filling equipment uses PLC-based control systems to coordinate bottle positioning, filling speed, nozzle movement, and production monitoring. ----- The automation system helps operators manage: · Filling volume adjustment · Production counting · Machine speed control · Fault detection · Filling parameter storage This reduces manual intervention and improves repeatability during continuous production. |
|

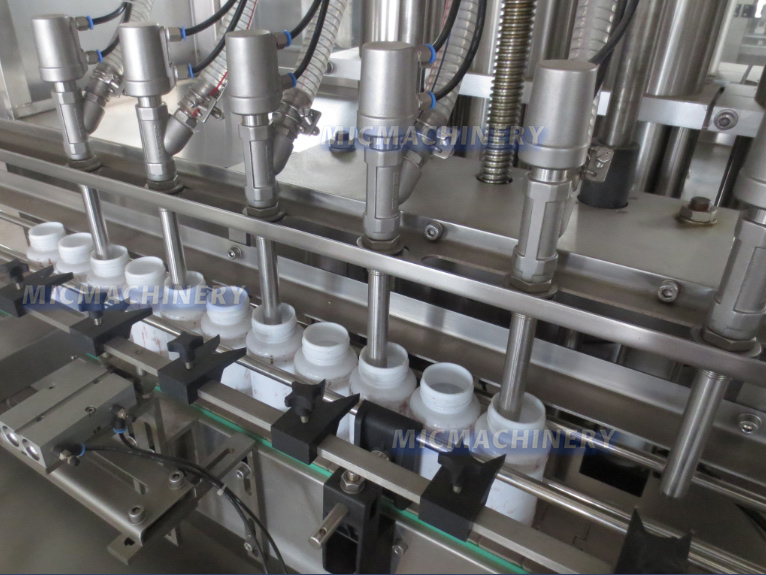

Anti-Drip Filling Nozzle Design Because ketchup tends to stretch and adhere during filling, nozzle design directly affects packaging quality. ----- Advanced filling machines use anti-drip valves and lifting nozzle structures to reduce: · Sauce stringing · Bottle contamination · Material waste · Cleaning frequency This design is especially important for retail ketchup bottles requiring clean appearance after filling. |
 |
 |

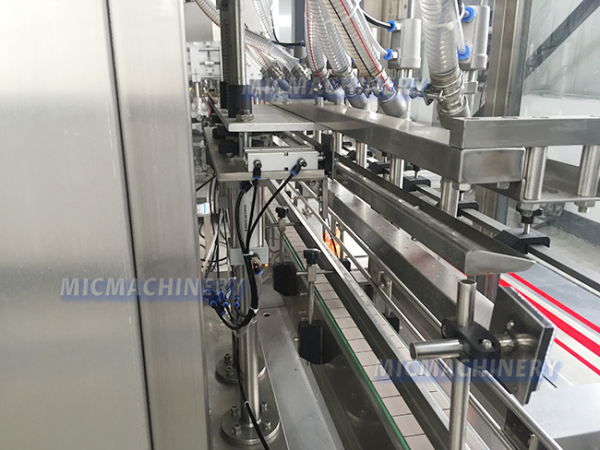

Sanitary Structure and Material Selection Food processing equipment requires strict control of material contact surfaces. Stainless steel components such as SUS304 or SUS316 are commonly selected for corrosion resistance and easy cleaning. ----- · A well-designed ketchup sauce filling machine should include: · Smooth internal pipelines · Minimal dead corners · Food-grade sealing components · Quick cleaning access These features help maintain product safety and extend equipment service life. |
How to Select a Suitable Automatic Ketchup Filling Machine?
Before purchasing equipment, manufacturers should evaluate several production parameters:
Product Characteristics
Confirm:
· Ketchup viscosity range
· Particle content
· Filling temperature
· Required storage conditions
Different formulations may require customized pumps, hoppers, or mixing systems.
Production Capacity
Small sauce producers may select semi-automatic filling machines, while industrial factories often require fully automatic ketchup filling production lines.
Capacity selection should consider:
· Bottles per hour
· Packaging format
· Future production expansion
Integration Capability
A complete sauce production system may include:
· Mixing tank
· Homogenizing equipment
· Filling machine
· Capping machine
· Labeling machine
· Conveyor system
Integrated solutions improve production efficiency and reduce compatibility issues between individual machines.
|
Applications of Ketchup Filling Equipment A ketchup filling machine is commonly used for: · Tomato ketchup · Chili sauce · BBQ sauce · Salad dressing · Jam · Mayonnaise · Thick condiment products Its flexible filling mechanism makes it suitable for food processing factories requiring accurate filling of medium and high-viscosity materials. |
|
FAQ
| What type of filling system is suitable for ketchup? |
| A piston filling system is generally preferred because it provides stable measurement and handles high-viscosity sauces effectively. |
| Can a ketchup filling machine fill other sauces? |
| Yes. With proper adjustment of filling parameters, the equipment can handle various sauces, pastes, and viscous food products. |
| How can filling accuracy be improved? |
| Accuracy can be improved through optimized piston volume, servo control, stable material feeding, and regular maintenance of sealing components. |
| What materials are used for ketchup filling machines? |
| Most industrial machines use stainless steel structures, especially food-grade SUS304 or SUS316 for parts contacting the product. |
| Can MIC Machinery customize a ketchup filling production line? |
| Yes. MIC Machinery provides customized filling solutions based on product viscosity, bottle type, production capacity, and factory layout requirements. |
